PROVA 300XP Portable Thermal Printer

제조사 : TES
원산지 : 대만
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

.

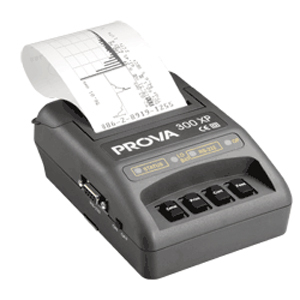

PROVA-300XP Portable Thermal Printer

  • Portable Field Printing for Certificate
  • Text and Graphics
  • Two Selectable Fonts (5*7 and 8*16)
  • Programmable text Header and Footer
  • Battery and AC Power Adaptor
  • RS-232C Interface (Optional RS-232C to USB Bridge)
  • Fixed Interval Continuous Printing(5, 30, 60, 300 seconds)


Printing Mechanical Specification

Method
Thermal Dot Printing
Dot Per Line
8 (vertical) * 166 ( horizontal )
Fonts
5*7 and 10*15
Dot Pitch
0.35 mm ( vertical ) , 0.28mm ( horizontal )
Character Size
1.4 * 2.4 mm ( 5 * 7 ), 2.8 * 4.6 mm ( 10 * 15 )
Characters Per Line
27 (5 * 7 ), 16 ( 10 * 15 )
Printing Contrast
Auto and User Selectable
Printing Width
46mm
Printing Speed
0.8 lines / second
Printing Life
500.000 lines
Paper Width
57 mm

Communication

Interface RS-232C (9600,8,1,N)
Receiving Buffer 9K bytes
Character set ASCII International
Graphics Bit Map
Option USB to RS -232C Bridge

Mechanical and Environmental Specification

Operating Temperature -10℃ ~ 50℃
Storage Temperature -20 ℃ ~ 60℃
Humidity 0 ~ 90% RH (Non-condensing)
Batteries 8*1.5V
AC Power Adaptor DC 12V
Dimension 95mm(W)*135mm(D)*55mm(H)
Weight 440g ( 8 batteries included)
