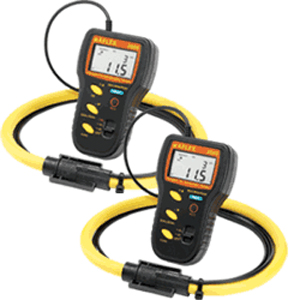

AFLEX -3005 Flexible Power Quality Tester

제조사 : TES
원산지 : 대만
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

AFLEX-3003 Flexible VA Harmonics Tester

AFLEX -3005 Flexible Power Quality Tester


Power Analysis (3005)

  • W, KW, H.P.
  • VA ,KVA, VAR, KVAR
  • PF, Phase Angle( Φ )
  • Energy (WH, KWH)
  • Dual displays (W+PF, VA+KVAR)
  • Balanced 3 Φ Power Quality and Sequence

Harmonics Analysis

  • True RMS (V and A)
  • 3000 A
  • Non-interrupted Harmonic Analysis ( V and A ) to the 50th Order in % and Magnitude
  • Analysis of % THD-F and C.F.
  • Fast Peak Function (33μs and 39μs)
  • Programmable PT (1 to 250 )ratios
  • Auto - Power - Off : 30 Minutes

Flexible probe , different from normal clamp meter, can pass through obstacles at will and wind many conducting wires simultaneously, max. diameter 170mm



AC Watt (50 or 65 Hz, PF 0.5 to 1, CT=1) AFLEX-3005 only

Range
Resolution
Accuray of reading
100.0 - 999.9 W
0.1 W
2% of range
1.000 - 9.999 KW
0.001 KW
2% of range
10.00 - 99.99 KW
0.01 KW
2% of range
100.0 - 999.9 KW
0.1 KW
2% of range
1000 - 9999 KW
1 KW
2% of range

AC Voltage(50 or 65 Hz, ,Auto Range, True RMS)

Range
Resolution
Accuracy of reading
4.0 V - 600 V
0.1 V
±0.5% ± 5dgts

Harmonics of AC Current in % and Magnitude(1 to 50th order)

Range
Resolution
Accuracy in %
Accuracy of Magnitude
1-20th
0.1%
±2%
±2% of reading ±0.4A
21st-50th
0.1%
±4% of reading ±2.0%
±4% of reading ± 0.4V

AC Current(50 or 65 Hz ,Auto Range, True RMS)

Range
Resolution
Accuracy of reading
0 - 300.0 A
0.1 A
1% of range
300.0 - 999.9 A
0.1 A
1% of range
1000 - 3000 A
1 A
1% of range

Harmonics of AC Voltage in % and Magnitude(1 to 50th order)

Range
Resolution
Accuracy in %
Accuracy of Magnitude
1-20th
0.1%
±2%
±2% ±0.5V
21st-50th
0.1%
±4% of reading ±2.0%
±4% of reading ± 0.5V

Total Harmonics Distortion(%THD-F,1 to 50th order)

Range
Resolution
Accuracy of reading
0.0-20%
0.1%
±2%
20-100%
0.1%
±6% of reading ±1%
100-999.9%
0.1%
±10% of reading ±1%
