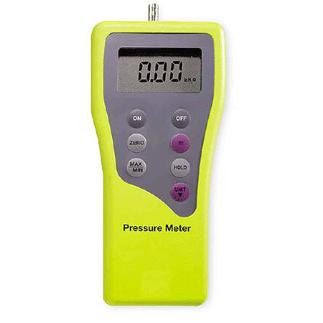

TP610 Single input digital manometer

제조사 : DAVIS
제품번호:TP610
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Replace messy U-tubes and expensive pressure gauges with digital manometers.
Replace messy U-tubes (water column manometers) and expensive pressure gauges with digital manometers.

Features
  • Auto Power Off after 40 minutes
  • Three-year limited warranty

Applications
  • Adjusting appliance regulators
  • Setting delivery pressures
  • Leakage "shut-in" test
  • Regulator adjustments for pressure and lock-up tests
  • Test for leaks in low-pressure gas systems
  • Isolate difficult pressure problems on natural gas and propane systems
  • Test pressure switch operation on a 2-stage gas furnace in both positive and negative pressures
  • Static pressures in air ducts for air balancing
  • Check air filters by measuring pressure drop

SPECIFICATIONS
TP610 single input and single unit of measure (inH2O)
TP615 single input and 7 selectable units of measure
TP620 dual input, differential and single unit of measure (inH2O)
TP625 Dual input, differential, and 7 selectable units of measure
TP615 & TP625 seven selectable units of measure: mmHg, inHg, kPa, mBar, PSI, inH2O, and mmH2O
All units are auto ranging from –15 to +48 inches of water
Accuracy +/- 0.5% of reading + 5 digits
Over Pressure 500 mBar
Power Supply 9 volt
Relative Humidity 0 to 80% (0 to 40 C)
Operating Temperature 0 to +40 C

CAT NO. MODEL DEscRIPTION AVAIL PRICE
TP610   610   Single input digital manometer in inH2O   Yes   365,040
TP615   615   Single input digital manometer in seven selectable units of measure   Yes   408,240



(mmHg, inHg, kPa, mBar, PSI, inH2O, and mmh2O)
TP620   620   Dual input digital manometer in inH2O   Yes   431,892
TP625   625   Dual input digital manometer in seven selectable units of measure   Yes   539,892



(mmHg, inHg, kPa, mBar, PSI, inH2O, and mmh2O)
TP901   A901   OPTIONAL Optional soft shoulder carrying case to TP610-TP625 FOR Single and Dual Input Digital Manometers   Yes   43,092
