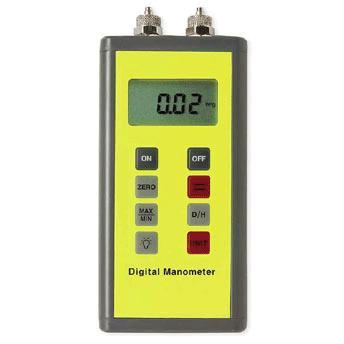

TP635 5 PSI differential digital pressure manometer
|
| Rugged extruded aluminum housing.Measure positive differential pressure. |
|
Features |
- Rugged extruded aluminum housing
- Measure positive differential pressure
- Push button zero for altitude correction
- Seven selectable units of measure to choose from: mmHg, inHg, kPa, mBar, PSI, inH20, and mmH20
- Easy-to-read LCD
- Backlight with auto shut off after 10 seconds
- Auto shut off after 30 minutes (except REC mode) to save battery life
- Record function stores maximum and minimum readings
- Data hold to freeze reading on LCD
- 3-year limited warranty
|
| |
|
Applications |
- Check for proper pressure in pneumatic systems
- Check supply gas pressures
- Check for proper pressures in clean rooms
- Check industrial HVAC systems
- Check operation of industrial pressure switches
|
| | | SPECIFICATIONS
| All Units Are Auto Ranging Units |
TP635 is 5 PSI, TP645 is 30 PSI, and TP655 is 100 PSI |
| Accuracy |
+/- 0.2% fs +3 digits |
| Over Pressure |
TP635 14.5 PSI (1,000 mBar); TP645 58 PSI (4,000 mBar); and TP655 is 145 PSI (10 Bar) |
| Vacuum |
TP635 –10 inHg; TP645 –29.53 inHg; TP655 –29.53 in Hg |
| Power Supply |
9 volts |
| Relative Humidity |
0-80% (0 to +40 C) |
| Operating Temperature |
32 to 104 F (0 to +40 C) |
| Storage Temperature |
14 to 122 F (-10 to +50 C) |
| Auto Power Off |
After 30 minutes (except in REC mode) |
| Input Type |
Differential |
| Trim Mode |
yes |
| Zero Adjust |
yes |
| Record Max/Min |
Yes |
| Units of Measure |
seven (mmHg, inHg, kPa, mBar, PSI, inH2O, and mmH2O) |
| Data Hold |
yes |
| CAT NO. |
 |
MODEL |
 |
DEscRIPTION |
 |
AVAIL |
 |
PRICE |
| TP635 |
|
635 |
|
5 PSI differential digital pressure manometer |
|
Yes |
|
581,040 |
| TP645 |
|
645 |
|
30 PSI differential digital pressure manometer |
|
Yes |
|
581,040 |
| TP655 |
|
655 |
|
100 PSI differential digital pressure manometer |
|
Yes |
|
581,040 |
| TP901 |
|
A901 |
|
OPTIONAL Optional soft shoulder carrying case to TP610-TP625 FOR Digital Pressure Manometers |
|
Yes |
|
43,092
|
| |
