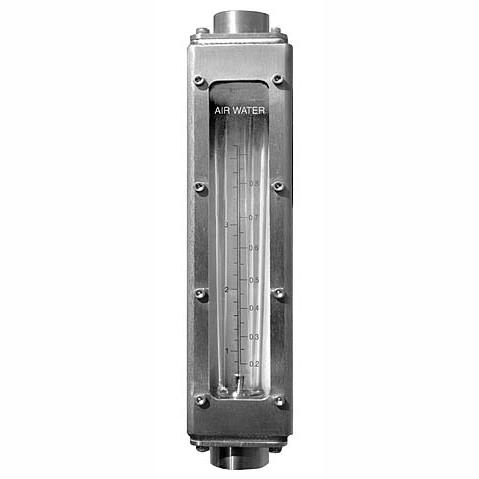

| Heavy-duty flowmeters are fully enclosed in a brushed stainless steel case. Meters are graduated for direct reading of water and/or air.
Ideal for industrial applications with flow rates up to 20GPM and 90 SCFM.Used with industrial water and air service.
Flowmeters come with FNPT end fittings for easy in-line installation. Wetted parts include borosilicate glass flowtubes, Viton7 o-rings, and 316 Stainless steel fittings, guide rods, floats and float stops. |
| | SPECIFICATIONS
|
Accuracy |
±3% of full scale |
| Minimum Flow Rate |
Approximately 10% ofmaximum flow rate |
| Repeatability |
±0.5% of full scale |
| Maximum Pressure (at 200F) |
200psi |
| Maximum Operating Temperature |
200°F (93°C) |
| Tube Size |
NPT (F) |
Dimensions |
|
A |
B |
C |
D |
| 3 and 4 |
1/2" |
2-1/2" |
11-7/8" |
2-9/16" |
8-15/16" |
| 5 and 6 |
1" |
3-3/8" |
13-3/4" |
3-7/8" |
10-11/16" |
| 8 and 9 |
2" |
5-5/16" |
16" |
5-3/8" |
11-5/8" |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| AA6436 |
|
MS-VJ-M01-01ST |
|
M Style Industrial Flowmeter, 0.25GPM Water, 1.0SCFM Air, Tube Type: 3 |
|
Yes |
|
950,400 |
| AA6437 |
|
MS-VJ-M02-01ST |
|
M Style Industrial Flowmeter, 0.36GPM Water, 1.5SCFM Air, Tube Type: 3 |
|
Yes |
|
950,400 |
| AA6438 |
|
MS-VJ-M03-01ST |
|
M Style Industrial Flowmeter, 0.74GPM Water, 3.0SCFM Air, Tube Type: 3 |
|
Yes |
|
950,400 |
| AA6439 |
|
MS-VJ-M04-01ST |
|
M Style Industrial Flowmeter, 1.0GPM Water, 4.2SCFM Air, Tube Type: 4 |
|
Yes |
|
950,400 |
| AA6440 |
|
MS-VJ-M05-01ST |
|
M Style Industrial Flowmeter, 1.5GPM Water, 6.0SCFM Air, Tube Type: 4 |
|
Yes |
|
950,400 |
| AA6441 |
|
MS-VJ-M06-01ST |
|
M Style Industrial Flowmeter, 2.0GPM Water, 8.2SCFM Air, Tube Type: 4 |
|
Yes |
|
950,400 |
| AA6442 |
|
MS-VK-M07-01ST |
|
M Style Industrial Flowmeter, 3.8GPM Water, 16SCFM Air, Tube Type: 5 |
|
Yes |
|
1,101,600 |
| AA6443 |
|
MS-VK-M08-01ST |
|
M Style Industrial Flowmeter, 5.0GPM Water, 21.5SCFM Air, Tube Type: 5 |
|
Yes |
|
1,101,600 |
| AA6444 |
|
MS-VK-M09-01ST |
|
M Style Industrial Flowmeter, 6.0GPM Water, 25.5SCFM Air, Tube Type: 6 |
|
Yes |
|
1,101,600 |
| AA6445 |
|
MS-VK-M10-01ST |
|
M Style Industrial Flowmeter, 7.4GPM Water, 30SCFM Air, Tube Type: 6 |
|
Yes |
|
1,101,600 |
| AA6446 |
|
MS-VK-M11-01ST |
|
M Style Industrial Flowmeter, 9.6GPM Water, 40SCFM Air, Tube Type: 6 |
|
Yes |
|
1,101,600 |
| AA6447 |
|
MS-VK-M12-01ST |
|
M Style Industrial Flowmeter, 11GPM Water, 45SCFM Air, Tube Type: 6 |
|
Yes |
|
1,101,600 |
| AA6448 |
|
MS-VK-M13-01ST |
|
M Style Industrial Flowmeter, 14GPM Water, 62SCFM Air, Tube Type: 6 |
|
Yes |
|
1,101,600 |
| AA6449 |
|
MS-VK-M14-01ST |
|
M Style Industrial Flowmeter, 20GPM Water, 90SCFM Air, Tube Type: 6 |
|
Yes |
|
1,101,600 |
| AA7250 |
|
MS-VL-M15-01-ST |
|
M Style Industrial Flowmeter, 22GPM Water, 90SCFM Air, Tube Type: 8 |
|
Yes |
|
2,030,400 |
| AA7251 |
|
MS-VL-M16-01-ST |
|
M Style Industrial Flowmeter, 26GPM Water, Tube Type: 6 |
|
Yes |
|
2,030,400 |
| AA7252 |
|
MS-VL-M17-01-ST |
|
M Style Industrial Flowmeter, 41GPM Water, 160SCFM Air, Tube Type: 9 |
|
Yes |
|
2,030,400 |
| AA7253 |
|
MS-VL-M18-01-ST |
|
M Style Industrial Flowmeter, 44GPM Water, 180SCFM Air, Tube Type: 8 |
|
Yes |
|
2,030,400 |
| AA7254 |
|
P16S1-VA0A 032-15GL |
|
M Style Industrial Flowmeter, 60GPM Water, 245SCFM Air, Tube Type: 9 |
|
Yes |
|
645,840 |
| AA7255 |
|
MS-VL-M20-01-ST |
|
M Style Industrial Flowmeter, 61GPM Water, 250SCFM Air, Tube Type: 8 |
|
Yes |
|
2,030,400 |
| AA7256 |
|
MS-VL-M21-01-ST |
|
M Style Industrial Flowmeter, 86GPM Water, Tube Type: 9 |
|
Yes |
|
2,030,400 |
| AA7257 |
|
MS-VL-M22-01-ST |
|
M Style Industrial Flowmeter, 116GPM Water, Tube Type: 9 |
|
Yes |
|
2,030,400 | | |
