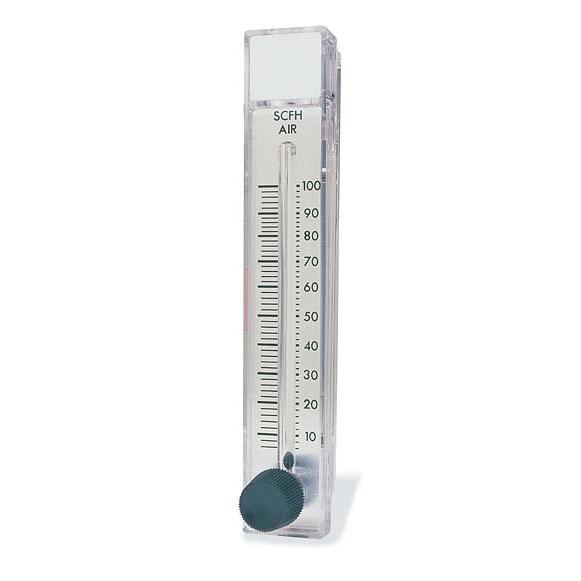

| This line of direct reading precision flow meters incorporates many unique user features at moderate cost. These low cost flow meters are ideal for general use.
Easy to read design – The direct reading scales eliminate troublesome conversions. The scales are brushed aluminum, coated with epoxy and the graduations are on both sides of the indicating tube. Special integral flow guides stabilize the float throughout the range to keep it from hunting or wandering in the bore. The float is highly visible against a white background.
Construction assures accuracy – All flow meter bodies are injection molded of tough, clear, shatter-proof polycarbonate plastic around a precision tapered pin. Critical internal diameter of the variable orifice tube is held within ±0.0004". The result is accurate and repeatable readings. The backbone into which pipe thread inserts are welded to absorb piping torque. Precision metering valves of brass are standard, stainless steel valves are available as an optional extra and permit precise flow adjustments. Vacuum application models are available with top mounted valves (please inquire). Series A models are accurate within ±4% of full scale reading: Series B within ±3%: large Series C within ±2%. |
| | SPECIFICATIONS
|
Meter Body, Bezel and Tube |
Polycarbonate |
| Wetted Metal Parts |
Stainless steel (except for optional brass valves) |
| Floats |
Stainless steel, Blk glass, Alum., K Monel |
| Float Stops |
Polycarbonate |
| Pipe Connections |
Model RMA, 1/8" model RMB, 1/4", model RMC, 1/2" NPT |
| "O" Rings |
Neoprene and Buna N |
| Fittings |
Stainless steel brazed to stainless steel backbone plate |
| Rivets |
Stainless steel, set into slots |
| Scale |
Brushed aluminum, clear epoxy coated |
| Knobs |
ABS plastic |
| Pressure Rating |
RMA 100 P.S.I., RMB 70 P.S.I., RMC 35 P.S.I. max. |
| Temperature Rating |
To 130°F maximum |
| Accuracy |
Model RMA, 4%; model RMB, 3%, Model RMC, 2% of full scale |
| All units supplied with a standard brass valve; See ordering information for optional stainless steel valves. Units without valve also available |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| DW900 |
|
RMC-101-BV |
|
Flow Meter, 10" Scale, Series C, 5-50 SCFH (Air) |
|
Yes |
|
178,200 |
| DW901 |
|
RMC-102-BV |
|
Flow Meter, 10" Scale, Series C, 10-100 SCFH (Air) |
|
Yes |
|
178,200 |
| DW902 |
|
RMC-103-BV |
|
Flow Meter, 10" Scale, Series C, 20-200 SCFH (Air) |
|
Yes |
|
178,200 |
| DW903 |
|
RMC-104-BV |
|
Flow Meter, 10" Scale, Series C, 40-400 SCFH (Air) |
|
Yes |
|
178,200 |
| DW904 |
|
RMC-105-BV |
|
Flow Meter, 10" Scale, Series C, 60-600 SCFH (Air) |
|
Yes |
|
178,200 |
| DW905 |
|
RMC-106-BV |
|
Flow Meter, 10" Scale, Series C, 100-1000 SCFH (Air) |
|
Yes |
|
178,200 |
| DW907 |
|
RMC-108-BV |
|
Flow Meter, 10" Scale, Series C, 180-1800 SCFH (Air) |
|
Yes |
|
178,200 |
| DW908 |
|
RMC-121-BV |
|
Flow Meter, 10" Scale, Series C, 1-10 SCFM (Air) |
|
Yes |
|
178,200 |
| DW909 |
|
RMC-122-BV |
|
Flow Meter, 10" Scale, Series C, 2-20 SCFM (Air) |
|
Yes |
|
178,200 |
| DW910 |
|
RMC-123-BV |
|
Flow Meter, 10" Scale, Series C, 3-30 SCFM (Air) |
|
Yes |
|
178,200 |
| DW911 |
|
RMC-134-BV |
|
Flow Meter, 10" Scale, Series C, 2-20 GPH (Water) |
|
Yes |
|
178,200 |
| DW912 |
|
RMC-135-BV |
|
Flow Meter, 10" Scale, Series C, 8-90 GPH (Water) |
|
Yes |
|
178,200 |
| DW913 |
|
RMC-141-BV |
|
Flow Meter, 10" Scale, Series C, .1-1 GPH (Water) |
|
Yes |
|
178,200 |
| DW914 |
|
RMC-142-BV |
|
Flow Meter, 10" Scale, Series C, .2-2.2 GPH (Water) |
|
Yes |
|
178,200 |
| DW917 |
|
RMC-145-BV |
|
Flow Meter, 10" Scale, Series C, 1.2-10 GPH (Water) |
|
Yes |
|
178,200 |
| DW918 |
|
RMB-49-BV |
|
Flow Meter, 5" Scale, Series B, .5-5 SCFH (Air) |
|
Yes |
|
88,020 |
| DW919 |
|
RMB-50-BV |
|
Flow Meter, 5" Scale, Series B, 1-10 SCFH (Air) |
|
Yes |
|
88,020 |
| DW920 |
|
RMB-51-BV |
|
Flow Meter, 5" Scale, Series B, 2-20 SCFH (Air) |
|
Yes |
|
88,020 |
| DW921 |
|
RMB-52-BV |
|
Flow Meter, 5" Scale, Series B, 5-50 SCFH (Air) |
|
Yes |
|
88,020 |
| DW922 |
|
RMB-53-BV |
|
Flow Meter, 5" Scale, Series B, 10-100 SCFH (Air) |
|
Yes |
|
88,020 |
| DW923 |
|
RMB-54-BV |
|
Flow Meter, 5" Scale, Series B, 20-200 SCFH (Air) |
|
Yes |
|
88,020 |
| DW924 |
|
RMB-55-BV |
|
Flow Meter, 5" Scale, Series B, 40-400 SCFH (Air) |
|
Yes |
|
88,020 |
| DW925 |
|
RMB-56-BV |
|
Flow Meter, 5" Scale, Series B, 50-500 SCFH (Air) |
|
Yes |
|
88,020 |
| DW926 |
|
RMB-57-BV |
|
Flow Meter, 5" Scale, Series B, 60-600 SCFH (Air) |
|
Yes |
|
88,020 |
| DW927 |
|
RMB-82-BV |
|
Flow Meter, 5" Scale, Series B, 1-12 GPH (Water) |
|
Yes |
|
88,020 |
| DW928 |
|
RMB-83-BV |
|
Flow Meter, 5" Scale, Series B, 1-20 GPH (Water) |
|
Yes |
|
88,020 |
| DW929 |
|
RMB-84-BV |
|
Flow Meter, 5" Scale, Series B, 4-40 GPH (Water) |
|
Yes |
|
88,020 |
| DW930 |
|
RMB-85-BV |
|
Flow Meter, 5" Scale, Series B, 10-100 GPH (Water) |
|
Yes |
|
88,020 |
| DW931 |
|
RMA-1-BV |
|
Flow Meter, 2" Scale, Series A, .05-0.5 SCFH (Air) |
|
Yes |
|
61,020 |
| DW932 |
|
RMA-2-BV |
|
Flow Meter, 2" Scale, Series A, .1-1 SCFH (Air) |
|
Yes |
|
61,020 |
| DW933 |
|
RMA-3-BV |
|
Flow Meter, 2" Scale, Series A, .2-2 SCFH (Air) |
|
Yes |
|
61,020 |
| DW934 |
|
RMA-4-BV |
|
Flow Meter, 2" Scale, Series A, .5-5 SCFH (Air) |
|
Yes |
|
61,020 |
| DW935 |
|
RMA-5-BV |
|
Flow Meter, 2" Scale, Series A, 1-10 SCFH (Air) |
|
Yes |
|
61,020 |
| DW936 |
|
RMA-6-BV |
|
Flow Meter, 2" Scale, Series A, 2-20 SCFH (Air) |
|
Yes |
|
61,020 |
| DW937 |
|
RMA-7-BV |
|
Flow Meter, 2" Scale, Series A, 5-50 SCFH (Air) |
|
Yes |
|
61,020 |
| DW938 |
|
RMA-8-BV |
|
Flow Meter, 2" Scale, Series A, 10-100 SCFH (Air) |
|
Yes |
|
61,020 |
| DW941 |
|
RMA-151-BV |
|
Flow Meter, 2" Scale, Series A, 5-50 CC Air/Min. |
|
Yes |
|
83,160 |
| DW942 |
|
RMA-150-BV |
|
Flow Meter, 2" Scale, Series A 10-100 CC Air/Min. |
|
Yes |
|
61,020 |
| DW943 |
|
RMA-11-BV |
|
Flow Meter, 2" Scale, Series A 30-240 CC Air/Min. |
|
Yes |
|
61,020 |
| DW945 |
|
RMA-13-BV |
|
Flow Meter, 2" Scale, Series A 100-1000 CC Air/Min. |
|
Yes |
|
61,020 |
| DW946 |
|
RMA-14-BV |
|
Flow Meter, 2" Scale, Series A 200-2500 CC Air/Min. |
|
Yes |
|
61,020 |
| DW947 |
|
RMA-26-BV |
|
Flow Meter, 2" Scale, Series A .5-5 LPM Air |
|
Yes |
|
61,020 |
| DW948 |
|
RMA-21-BV |
|
Flow Meter, 2" Scale, Series A 1-10 LPM Air |
|
Yes |
|
61,020 |
| DW949 |
|
RMA-22-BV |
|
Flow Meter, 2" Scale, Series A 2-25 LPM Air |
|
Yes |
|
61,020 |
| DW950 |
|
RMA-23-BV |
|
Flow Meter, 2" Scale, Series A 5-50 LPM Air |
|
Yes |
|
61,020 |
| DW951 |
|
RMA-23-BV |
|
Flow Meter, 2" Scale, Series A 10-100 LPM Air |
|
Yes |
|
61,020 |
| DW954 |
|
RMA-34-BV |
|
Flow Meter, 2" Scale, Series A 20-300 LPM Air |
|
Yes |
|
61,020 |
| DW955 |
|
RMA-42-BV |
|
Flow Meter, 2" Scale, Series A 1-11 GPH (Water) |
|
Yes |
|
61,020 |
| DW958 |
|
RMA-45-BV |
|
Flow Meter, 2" Scale, Series A 5-50 GPH (Water) |
|
Yes |
|
61,020 |
| |
