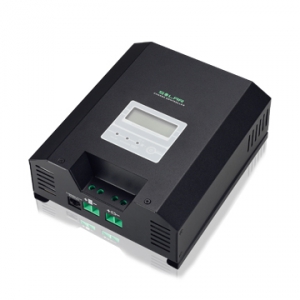

KSCC-MPPT 3KW 솔라 충전기

판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Main Features
  • Intelligent Maximum Power Point Tracking technology
  • Built-in DSP controller with high performance
  • Three-stage charging optimizes battery performance
  • Multifunction LCD displays detailed information
  • Reverse polarity protection of solar panel and battery
  • Overcharge protection
  • IP 21 protection
  • Suitable for battery types of sealed lead acid, vented, Gel, and NiCd
  • Standard RJ45 port for remote monitoring


SCC-MPPT 3K
INPUT
MPPT Range 60 VDC ~ 132 VDC
Maximum PV Array Open Circuit Voltage 150VDC
Maximum PV Array Power 3000W
OUTPUT
Nominal Battery Voltage 48 V
Connected Battery Type Sealed lead acid, vented, Gel, NiCd battery
Maximum Charging Current 60 A
Maximum Efficiency 98.0 %
Standby Power Consumption 2W
Charging Method Three stages: bulk, absorption, and floating
PROTECTION
Overcharge Protection Yes
Polarity Reversal Protection @ Solar Cell & Battery Yes
INDICATORS
LCD Display LCD panel indicating solar power, output power, battery voltage, charging current, and fault conditions
LED Display Three indicators for solar, battery, and wiring fault
PHYSICAL
Dimension, D x W x H (mm) 180 x 210 x 80
Net Weight (kgs) 1.28
Connector Input / Output terminal block
Type of Mechanical Protection IP 21
ENVIRONMENT
Humidity 0 ~ 90% RH (No condensing)
Altitude -20°C to 55°C
Operating Temperature -40°C to 75°C
Storage Temperature 0 ~ 3000 m
