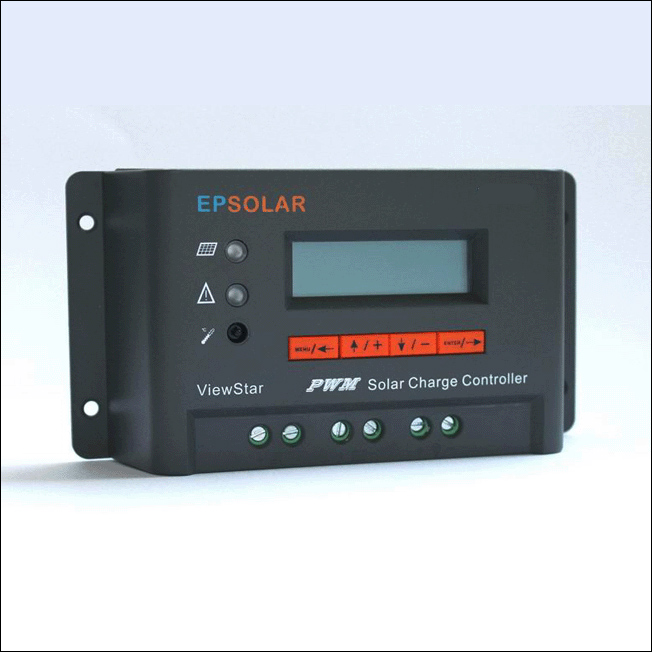

VS2024N 12/24V, 20A PWM 솔라콘트롤러

판매가격 : 전화문의
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Electrical parameters

VS1024N

VS2024N

VS3024N

VS4024N

VS5024N

VS6024N

Normal system voltage

12V/24V auto work

Rated battery current

10A

20A

30A

40A

50A

60A

Max. battery voltage

32V

Self-consumption

≤18mA

Communication

TTL232 / 8pin RJ45

Equalize Charging Voltage

Sealed:14.6V;x2/24V Flooded:14.8V;x2/24V

Boost Charging Voltage

Gel:14.2V;x2/24V Sealed:14.4V;x2/24V Flooded:14.6V;x2/24V

Float Charging Voltage

13.8V;x2/24V

Low Voltage Reconnect Voltage

12.6V;x2/24V

Low Voltage Disconnect Voltage

11.1V;x2/24V

Temp. compensation

-30mV/℃/12V(25℃)

Relative humidity

10%~90% Non-condensation

Working temperature

-20℃ to +55℃

Enclosure

IP20

Features:
·Adopt graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons, integrated menu displaying and operation
·32 bit MCU with high speed
·12 bit A/D high-precision sampling to ensure accuracy
·Excellent EMC design
·High efficient Series PWM charging
·Use MOSFET as electronic switch
·Widely used, automatically recognize day/night
·Humanized design of browser interface, undertake every operating conveniently
·Full control parameters setting and modification, diversified load control mode
·Gel, Sealed and Flooded battery type option
·Adopt temperature compensation, correction algorithm for charging and discharging parameters automatically

Electronic Protections:
·Overheating
·Over discharging
·Over charging
·Load overload
·Load short circuit
·PV reverse polarity
·Battery reverse polarity
