DRS 열화상 카메라 Tamarisk® 320

제조사 : DRS
원산지 : 미국
판매가격 : 전화문의
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

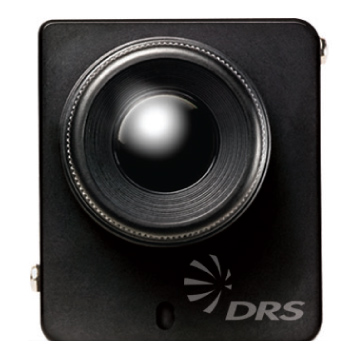

Tamarisk®320

Introducing the world’s smallest 320 x 240 thermal camera with an integrated shutter for flat-field correction.

With camera modules weighing as little as 30 grams, occupying less than 30 cubic centimeters, and drawing as little as 750 mW of power, the Tamarisk®320 redefines the compact class of thermal cameras making it the ideal solution for applications constrained by aggressive size, weight and power requirements.

The first 320 x 240 VOx microbolometer of its kind, it combines industry leading 17 μm pixel pitch technology with DRS’ patented advanced absorber superstructure to provide greater sensitivity and superior image quality. Regardless of lighting conditions, the camera produces crystal clear imagery during day, night, and through smoke, dust, haze, and fog.

The Tamarisk®320 is available with a lens focal length of 7.5 mm, 11.2 mm, 21 mm or 35 mm, with horizontal fields of view of 40°, 27°, 15°, and 9° respectively and a no lens configuration for mounting a custom optic of your own. Additionally, modular electronics makes the imager very easy to integrate into systems produced by manufacturers, and its low power consumption can provide extended capabilities to those systems.

Light, compact, and easy to integrate, the Tamarisk®320 is the superior choice for security, unmanned vehicles, retail analytics, man-portable imaging devices and unmanned sensor applications.

Export of this item may require prior approval from the U.S. Government.
