DRS 열화상 카메라 UC640-17-LW

제조사 : DRS
원산지 : 미국
판매가격 : 전화문의
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

UC640-17-LW

DRS’ UC640-17-LW is an uncooled, highly sensitive vanadium oxide (VOx) detector, incorporating DRS' patented absorber technology, to image infrared energy in the 8-14 micrometer spectrum. Featuring an image resolution of 640 x 480 pixels, it provides outstanding thermal imagery for applications that demand high resolution, small size, light weight, and low power consumption. The UC640-17-LW utilizes a 17 µm pixel pitch, which results in reductions in size and weight without comprising imaging performance.

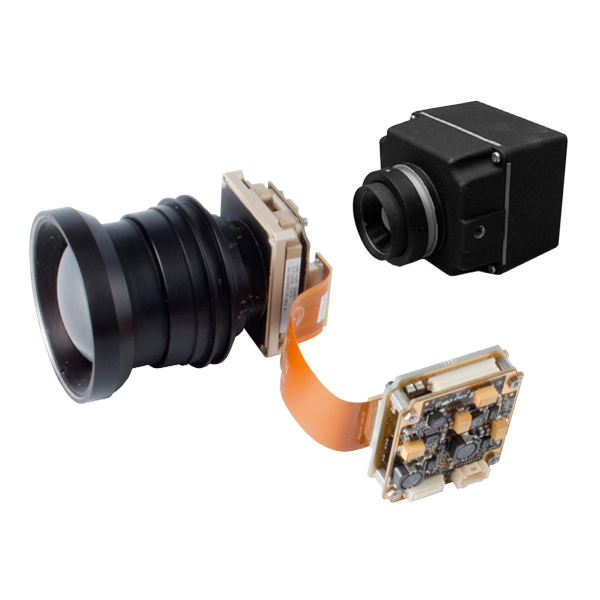

The UC640-17-LW is available in two configuration formats: a ruggedized, environmentally sealed OEM (housed) and SC (open frame split electronics) configuration for maximum integrator flexibility. It comes with a variety of lens focal length options, as well as a no lens option for those customers who would like to mount their own custom lens. In addition, its T-Comp circuit design allows operation without the need for the temperature stabilization of a thermoelectric cooler (TEC).

This camera was built to perform under virtually any circumstances. Its advanced VOx microbolometer structure is enhanced with a DRS-patented “umbrella” absorber. Its housing is environmentally sealed for use in any environmental conditions. And it takes full advantage of Local Area Processing (LAP™) image-enhancement technology to give users as much information as possible whatever the conditions may be.

The UC640-17-LW comes with an industry standard Camera Link digital video interface. This interface is directly accessible from an environmentally sealed SDR connector on the rear of the OEM camera or an alternate connector on the split configuration camera.

Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State, Directorate of Defense Trade Controls, prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulation, Parts 120-130.
