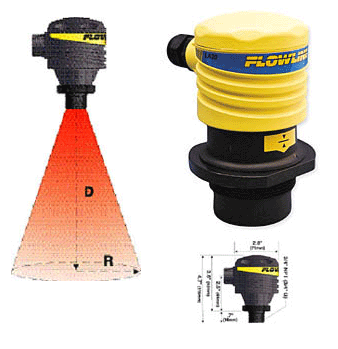

FN155001 Alphasonic Non-Contact Level Transmitter

제조사

DAVIS

제품번호

FN155001

판매가격

원

포인트

점

수량

개

■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

Fail-safe intelligence ensures echo signal loss safety. Steady, accurate display to +/- 199,990

Non-Contact Level Transmitter Features

Fail-safe intelligence ensures echo signal loss safety
Non-contact continuous level measurement with two-wire 4-20 mA output
Accurate and reliable measurement from 0.3 to 10 feet
Low cost solution for broad range of OEM and process applications
3/4" transducer for installation in small tank environments
Automatic temperature compensation over entire range
Echo-safe™ filtration eliminates false echo signal returns
All plastic construction with PVDF transducer and PP enclosure rated NEMA 4X
Fail-safe intelligence provides maximum process safety

Digital Indicator Features

Steady, accurate display to +/- 199,990
4 1/2 Digits + extra zero
UL Listed
4 Alarm points with LED status indication
NEMA 4 front panel
Isolated 24V transmitter power supply
LED indication for power and fail-safety status
Echo-safe™ filtration eliminates false echo signal returns
Easy single button scaling

Bulk Tank Level Features

Low cost solution for OEM and process applications
Simple design does not require any field calibration
8° beam allows application in restricted environments
Rugged NEMA 4X enclosure with PVDF transducer
Automatic temperature compensation over entire range
LED indication for power and fail-safety status
Echo-Safe™ filtration eliminates false echo signal returns
Accurate and reliable level measurement up to 12 feet
Fail-safe intelligence provides maximum process safety

CAT NO.

MODEL

DEscRIPTION

AVAIL

PRICE

FN155001

LA15-5001

ALPHASONIC NON-CONTACT LEVEL TRANSMITTER

Yes

1,069,200

FN205001

LA20-5001

BULK TANK ALPHASONIC LEVEL TRANSMITTER

Yes

1,285,200

FN205061

LA20-5061

BULK TANK ALPHASONIC LEVEL TRANSMITTER VITON ML:LA20-5061

Yes

1,393,200

PD885100

PD690-3-N

OPTIONAL DIGITAL INDICATOR, 117VAC FOR Flowline® Ricochet™ Alphasonic Non-Contact &
Bulk Tank Alphasonic Level Transmitter

Yes

550,800
