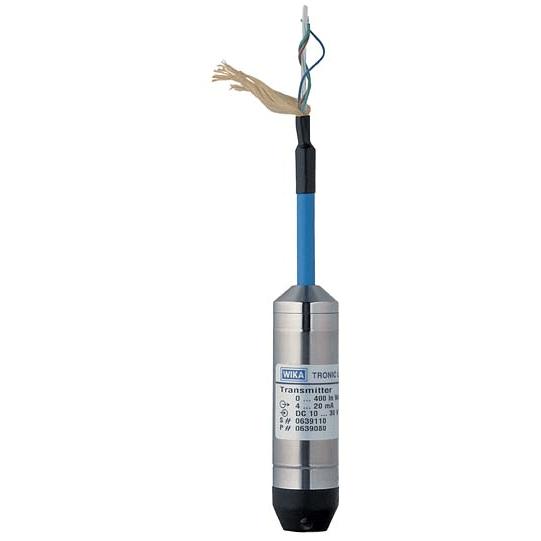

WK4262761 Submersible Liquid Level Transmitter

제조사 : DAVIS
제품번호:WK4262761
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The transmitter features a watertight,vented polyurethane cable that can withstand over 220 pounds
WIKA LS-10 submersible liquid level transmitters and transducers are engineered for a wide variety of industrial and municipal liquid level measurement applications. Each transmitter undergoes extensive quality control testing and calibration to achieve an accuracy < 0.25% full scale. The printed circuit boards use state-of-the-art surface mount technology for protection against mechanical shock and vibration. Each is temperature compensated to assure accuracy and long-term stability when exposed to severe ambient temperature variations.

The transmitter features a watertight, vented polyurethane cable that can withstand over 220 pounds of strain. This allows the transmitter to be supported without any additional cabling. The transmitter meets NEMA 6P and IP 68 requirements for submersion up to 300 feet.

This compact, rugged submersible pressure transmitter is suitable for applications in level measurement, water and wastewater treatment, well depth measurement, and offshore water depth measurement.



CAT NO. MODEL DEscRIPTION AVAIL PRICE
WK4262761   4262761   Submersible Liquid Level Transmitter, Range: 0 - 100 Inches WC   Yes   810,000
WK4262779       Submersible Liquid Level Transmitter, Range: 0 - 150 Inches WC   Yes   810,000
WK4262787       Submersible Liquid Level Transmitter, Range: 0 - 250 Inches WC   Yes   810,000
WK4262809       Submersible Liquid Level Transmitter, Range: 0 - 5 psi   Yes   810,000
WK4262817       Submersible Liquid Level Transmitter, Range: 0 - 10 psi   Yes   810,000
WK4262825       Submersible Liquid Level Transmitter, Range: 0 - 15 psi   Yes   810,000
WK4262883       Submersible Liquid Level Transmitter, Range: 0 - 25 psi   Yes   Call 031-777-1588
WK4262841       Submersible Liquid Level Transmitter, Range: 0 - 30 psi   Yes   810,000
WK4262850       Submersible Liquid Level Transmitter, Range: 0 - 50 psi   Yes   810,000
WK4262868       Submersible Liquid Level Transmitter, Range: 0 - 100 psi   Yes   810,000
