Test flue gases in furnaces or combustion equipment and rooms or spaces for the presence

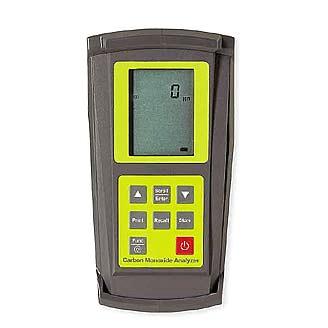

Test flue gases in furnaces or combustion equipment and rooms or spaces for the presence and location of CO leaks. Fits comfortably in your hand, operates with just the push of a button, and comes with a protective rubber boot.
Features
Fast response and clearing with advanced pump driven technology
Peak Hold to capture peak CO reading
Instrument will not shut off if 15 ppm CO is present, increasing safety
Store Button allows you to save up to eight readings and then print using the IR port and optional A740 printer
1-ppm resolution
CO Range 0 to 10,000 ppm
Push on fittings are fast and easy to use
Large, easy-to-read, backlit display
Pump flow block indicator
Advanced electrochemical sensor is field replaceable and calibrateable
Protective rubber boot and soft carrying case with shoulder strap included
Three-year limited warranty on tester and two year limited warranty on CO sensor
Applications
Test flue gases in furnaces or combustion equipment and rooms or spaces for the presence and location of CO leaks
SPECIFICATIONS
Range
0 to 10,000 ppm CO
Resolution
1-ppm
Response time
90% of reading within <60 seconds
Sensor
Electromechanical CO sensor/
Two-year limited warranty
Warm Up
Approximately 20 seconds
Duty Cycle
30 minutes
Power supply
3 "AA" Alkaline Batteries
Battery Life
Approximately 30 hours
Size
3.75 " x 8" x 3" (95 x 203 x 76 mm)
Weight
1.1 lbs (500 g)
Probe length
9 inches (230 mm)
Tube Length
5 feet (152.4 cm)
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
TP707
707
Single Gas Analyzer with protective boot, soft shoulder strap carrying case
