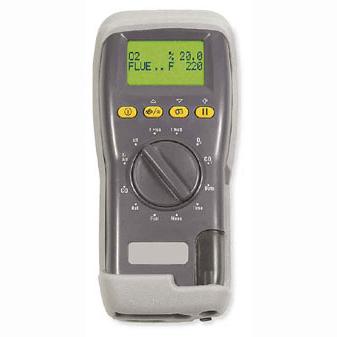

UE50 Combustion Analyzer

제조사 : DAVIS
제품번호:UE50
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The UE50 and UE75 will enable HVAC professionals to accurately test
The UE50 and UE75 will enable HVAC professionals to accurately test and service all residential combustion appliances. The mutlimeter style rotary selector, allows the technician to easily choose combustion parameters allowing for quick measuring of flue temperature or oxygen and fast calculations of carbon dioxide, gross/net efficiency, or excess air. For technicians who are required to diagnose and repair heating equipment, the UE75 provides the added benefits of measuring Carbon Monoxide and calculating CO air free. Both analyzers have an extra large backlit LCD display that shows two parameters at one time. A protective ruggedize boot with an integral magnet allows for hands-free readings and provides the kind of durability expected.

Features
  • Easy multimeter style rotary selector
  • Measures flue temperature and oxygen
  • Calculates carbon dioxide, gross/net efficiency, and excess air
  • Reads pre-programmed fuels natural gas, light oil, propane, butane, & LPG
  • Infrared printer port allows for printing test results to an optional printer with date and time
  • Large back-lit LCD, 2 line display
  • Protected boot with an integral magnet
  • Three year limited warranty with two years on sensor

SPECIFICATIONS

Parameter

Resolution Accuracy Range
Flue Temperature 1°F/°C ±5°F (2°C) ±0.3% reading 32-1112°F (0-600°C)
Oxygen 0.1% ±0.2%*1 0-21%
Carbon Monoxide (UE75 Only) 1ppm ±10ppm<100ppm*1 ±5% of reading 0-2000ppm (4000ppm max for 15 mins.)
Carbon Dioxide*2 0.1% ±0.3% reading 0-30%
Efficiency*2 0.1% ±1.0 reading 0-99.9%
Excess Air*2 0.1% ±0.2% 0-250%
Pre-programmed Fuels Natural Gas, Light Oil, Propane, Butane, LPG
Weight 2.2lb (1kg)
Handset 8" (200mm) x 2" (45mm) x 3.5" (90mm)
Probe L 12" (300mm) x Dia 0.25" (6mm) with 8" (200mm) long stainless steel shaft, type K thermocouple and 9ft (3m) long neoprene hose
Ambient Operating Range 32-104°F (0°C to 40°C) 10% to 90% RH non-condensing
Battery Life Standard "AA" (x4) >8 hours continuous use
*1 Using dry gases at STP *2 Calculated

CAT NO. MODEL DEscRIPTION AVAIL PRICE
UE50   C50   Combustion Analyzer   Yes   861,840
UE75   C75   Combustion Analyzer   Yes   1,079,978
