MN1255 LCR Meter

제조사 : DAVIS
제품번호:MN1255
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Measures inductance, capacitance and resistance, 28 control positions to test a wide range of components
Model LCR55
  • Measures inductance, capacitance and resistance
  • 28 control positions to test a wide range of components
  • Inductance with seven ranges from 200µH to 200H
  • Capacitance has nine ranges from 200pF to 20mF
  • Resistance with seven ranges from 20ohm to 20Mohm
  • Zero out stray resistance with front panel control
  • Also tests diodes, microwave diodes and transistors
  • Shipped with safetey test leads w/screw-on alligator clips, protective holster and manual

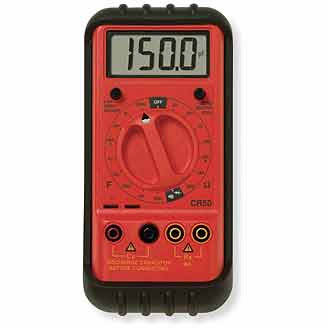

Model CR50
  • Pocket-sized Capacitance and Resistance meter
  • Measure capacitance in nine ranges from 200pF to 20mF
  • Seven ranges for resistance from 20ohm to 20Mohm
  • Diode test function and a continuity beeper
  • External meter knob adjusts out stray capacitance and resistance
  • Shipped with safetey test leads w/screw-on alligator clips, protective holster and manual

SPECIFICATIONS


MN1250

MN1255

Inductance

—

200H

Resolution

—

0.1uH in 200uH range

Capacitance

20,000uF

20,000 uF

Resolution

0.1pF in 200pF range

0.1pF in 200pF range

Resistance

20M Ω

20M Ω

Resolution

0.01 Ω in 20 Ω range

0.01 Ω in 20 Ω range

Diode

Yes

Yes

Continuity

Yes

—


CAT NO. MODEL DEscRIPTION AVAIL PRICE
MN1255   LCR55   LCR Meter   Yes   388,692
MN1250   CR50   Capacitance and Resistance Meter   Yes   183,492
FL231   VC231   Carry Case for LCR55   Yes   34,452
FL30   VC30   Optional Carry Case   Yes   32,292
