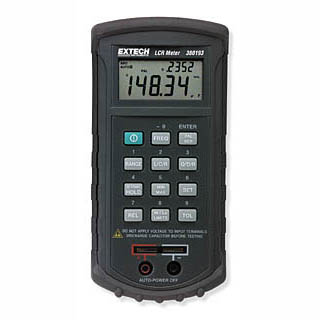

EH380193 Passive Component LCR Meter

제조사 : DAVIS
제품번호:EH380193
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Measures Capacitance and Inductance to 0.7% and Resistance to 0.5%
Features
  • Measures Capacitance and Inductance to 0.7% and Resistance to 0.5%
  • Simultaneous 20,000/10,000 count display of the primary parameter (L, C or R) with the secondary parameter of Q (quality), D (Dissipation) or R (resistance)
  • Test frequencies of 120 Hz and 1 kHz
  • Set Hi/Lo limits using absolute values or percentage limits
  • Selectable Parallel or Series equivalent circuit
  • 4-1/2 digit backlit LCD display provides resolution to 0.1 pF, 0.1 µH and 0.001Ohms
  • Max/Min/Avg recording
  • Built-in test fixture or use external test leads
  • Open and Short Zero removes unwanted stray impedances from the measurement
  • Relative mode with zero reference or user supplied reference
  • Powered by 9V battery or optional AC adaptor
  • Complete with test leads, alligator clips, 9V battery and protective holster

SPECIFICATIONS


Ranges

Inductance 2000.0μH, 20.000mH, 200.00mH, 2000.0 mH, 20.000H, 200.00H, 2000.0H, 20000H
Capacitance 2000.0pF, 20.000nF, 200.00nF, 2000.0nF, 20.000μF, 200.00μF, 2000.0μF, 10.000mF
Resistance 20.000Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ
DF (with C) 0 to 0.9999
Q 0 to 9999
Test Frequency 120 Hz and 1 kHz
Dimensions/Weight 7.56 x 3.58 x 2.1" (19.2 x 9.1 x 5.25 cm)/12.87 oz (365 g)

CAT NO. MODEL DEscRIPTION AVAIL PRICE
EH380193   380193   PASSIVE COMPONENT LCR METER   Yes   408,240
EH380194   SW193   OPTIONAL Software and Cable FOR Passive Component LCR Meter   Yes   75,600
EH1194153   153117   OPTIONAL AC ADAPTER 117VAC FOR Passive Component LCR Meter   Yes   41,040
