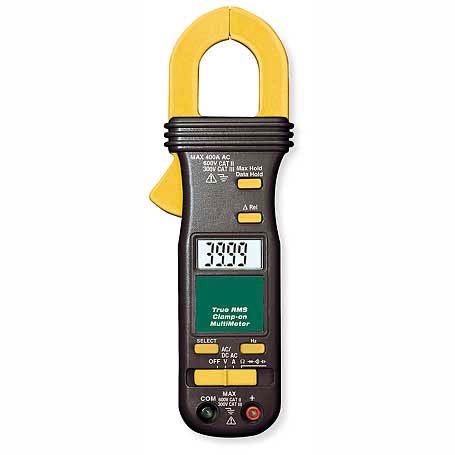

The MiniAmp™ Series of AC Clamp-on multimeters are available in three models each
The MiniAmp™ Series of AC Clamp-on multimeters are available in three models each with a feature to fit a particular application. All models have a durable high impact case which will provide years of heavy duty use. The small size and low price does not disguise the many features and quality of the meters. The two display models offer simultaneous measurements of current plus voltage (power) or temperature or resistance. Other models offer a µA current function which is useful for flame rod testing and a TRMS feature which is ideal for measuring current where distortion and harmonics are a problem.
Features
AC Current – 1.1" jaw measures current to 400Amps
Displays – Models with One or Two large 4000 count displays
Common Functions – All models with Capacitance and Frequency
Advanced Functions – Models available with True RMS, Temperature and µA Current
Dual Displays – Two display models perform simultaneous measurements of AC current plus any multimeter function
Features – Autoranging, Peak current capture and Data Hold
Includes – Test leads, batteries, carrying case, and temperature probe (model EH460)
SPECIFICATIONS
Display (EH420)
4000 count
Display (EH440, EH460)
Two 4000 count displays
True RMS (EH420)
Yes
Basic DC Volt Accuracy
0.5%
AC Amp Range
0.01A to 400A
AC/DC μAmp Range (EH440, EH460)
0.1μA to 1000μA
AC Volt Range
1mV to 600V
DC Volt Range
0.1mV to 600V
Ohms Range
0.1Ω to 40MΩ
Capacitance Range
0.2nF to 3000μF
Frequency Range
0.001Hz to 50kHz
Temperature Range (F/C) (EH460)
0°F to 573°F
Continuity/Diode
yes
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
EHMA420
MA420
SINGLE DISPLAY 400A AC TRUE RMS MINI CLAMP-ON MULTIMETER
Yes
192,240
EHMA440
MA440
DUAL DISPLAY 400A AC MINI CLAMP-ON MULTIMETERS W/MICRO AMP FUNCTION
Yes
257,040
EHMA460
MA460
DUAL DISPLAY 400A AC MINI CLAMP-ON MULTIMETER W/TEMPERATURE
Yes
321,840
EH480172
480172
OPTIONAL AC LINE SEPARATOR 3-PRONG PLUG FOR MiniAmp™ Series Digital Clamp-on Multimeters
Yes
41,040
