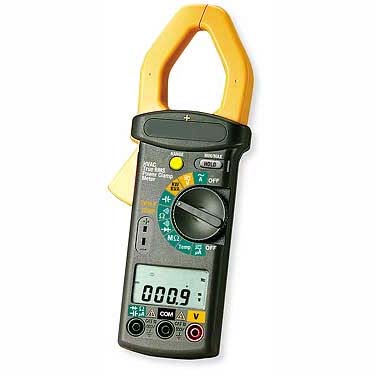

EH380975 HVAC True RMS Power Clamp Meter
|
| Measures True Power (kW), Apparent Power (kVA) and Phase Angle with Lead/Lag indicator |
|
Features |
- Large dual LCD display (9999 count)
- Measures True Power (kW), Apparent Power (kVA) and Phase Angle with Lead/Lag indicator
- AC+DC µA current with 10nA resolution for flame rod tests
- Max/Min recording with elapsed time indication
- Auto Detect AC/DC Voltage measurements with simultaneous frequency display
- Capacitance to 3500µF with 0.001µF resolution
- High Resistance tests to 100MΩ
- Type K, °C/°F switchable, temperature to 1000ºF
- Auto power off with disable feature
- 1.6" (40mm) clamp jaw opening
- Complete with test leads, Type K probe, carrying case and battery
- CAT III-600V
|
| | | SPECIFICATIONS
| Function |
Max Range / Res. |
Basic Accuracy |
| True Power (W) |
600kW / 10W |
±5%+ 20d |
| Apparent Power(kVA) |
600kVA / 10kVA |
±2.5%+ 20d |
| Phase Angle (Ø) |
-90 to +90° / 0.1° |
±0.3° |
| AC Current: (Trms) |
1000A / 10mA |
±2%+ 20d |
| μA Current (AC+DC) (Trms) |
1000μA / 10nA |
±1%+ 20d |
| AC/DC Voltage: (Trms) |
600V / 0.1mV |
±1%+ 20d |
| Resistance (ohms) |
1000kΩ / 0.1Ω |
±1%+ 10d |
| Resistance (Megohms) |
100MΩ / 1kΩ |
±5%+ 10d |
| Capacitance |
3500μF / 1nF |
±1.5%+ 5d |
| Frequency |
40Hz to 1kHz / 0.1Hz |
±0.5%+ 2d |
| Temperature (Type K) |
-58 to 1000°F / 0.1°F -50 to 900°C / 0.1°C |
±1%+ 2°F ±1%+ 1°C |
| Frequency |
40Hz to 1kHz / 0.1Hz |
±1%+ 2d |
| Dimensions/Weight |
9 x 3 x 1.6" (228 x 76 x 39mm) / 16.4oz (465g) |
|
| CAT NO. |
 |
MODEL |
 |
DEscRIPTION |
 |
AVAIL |
 |
PRICE |
| EH380975 |
|
380975 |
|
HVAC True RMS Power Clamp Meter |
|
Yes |
|
429,840 |
| EH480172 |
|
480172 |
|
OPTIONAL AC LINE SEPARATOR 3-PRONG PLUG FOR 1000 Amp HVAC True RMS Power Clamp-On |
|
Yes |
|
41,040
| | |
