| BMM503 Advanced feature contractor/service technician insulation tester and multimeter. Offers voltage ranges of 250, 500, and 1000 V.
BMM2000 With Milliamp and frequency.
BMM2500 Top of the range contractor/service technician insulation tester and multimeter featuring result storage, printing, and downloading. Offers the same voltage ranges as the BMM2000.
BMM80 High spec low voltage/specialty application insulation tester and multimeter. Features 50, 100, 250, 500, and 1000 V insulation ranges.
BMM2080 Advanced feature low voltage/specialty application insulation tester and multimeter. Like the BMM80, it offers voltage ranges of 50, 100, 250, 500, and 1000 V.

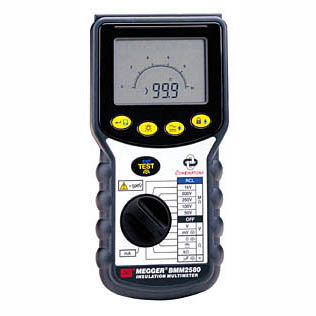

BMM2580 Top of the range low voltage/specialty application insulation tester and multimeter. Features include result storage, printing and downloading. Voltage ranges of 50, 100, 250, 500 and 1000 are also available in this model.
All instruments supplied with the SP1 Remote Switch Probe for hands-free operation. |
| |
|
Features |
- Patented analog and digital displays
- Complete multimeter capability — Voltage measurement, Current, Frequency and Low-resistance measurement
- mV transducer input
- Selectable locking test button
- Auto-Discharge Facility
- 3 Year Warranty
- Live Circuit Warning
- User selectable LCD backlight
- Auto Shut Off
- Test Result Storage
- RS232 9 pin male D connector
- Printer Output
- Datalogging, storage and downloading
- Waterproof and dustproof to IP54
|
| | | SPECIFICATIONS
|
Insulation Measuring range |
BD422115: 0.01 MΩ to 10 GΩ (Digital), 0 to 100 GΩ (Analog) |
| BD42270 and BD422112: 0.01 MΩ to 20 GΩ (Digital), 0 to 100 GΩ (Analog) |
| BD422114, BD422111, BD422113: 0.01 MΩ to 200 GΩ (Digital), 0 to 100 GΩ (Analog) |
| EN61577 operating range |
0.10Ω to 99.9 Ω (0.10MΩ to 1,000 MΩ on BD422115 only) |
| Accuracy |
±2% ±2 digits |
| Continuity Open circuit voltage |
5 V ±1 V |
| Continuity Test current |
210 mA ±10 mA (0 to 2Ω) |
| Continuity Zero offset at probe tips |
0.10 Ω typical |
| Continuity Lead resistance zeroing |
Up to 9.99 Ω |
| Resistance Measuring Range |
0.01 kΩ to 9.99 MΩ (0 to 100 MΩ on analog scale with Auto Ranging or Range Lock Facility) |
| Resistance Accuracy |
±3% ±2 digits |
| Resistance Open Circuit Voltage |
5 V ±1 V |
| Resistance Short Circuit Current |
25 μA ± 5 μA |
| Voltage Measuring range |
±1 V to ±500 V (0 to 1000 V on analog scale) |
| Voltage Accuracy |
0 to 500 V dc or ac (50/60 Hz) ±2% ±3 digits; 0 to 500 V 400 Hz ac ±5% ±3 digits |
| Millivolts Measuring Range |
±0.1 mV to ±1999 mV (0 to 1000 mV on analog scale) |
| Millivolts Accuracy |
10 mV to 1999 mV dc or ac (50/60 Hz) ±2% ±3 digit; 0.1 mV to 10 mV dc or ac (50/60 Hz) ±2% ±5 digits; |
| 10 mV to 1999 mV ac (16 to 460 Hz) ±5% ±3 digits; 0.1 mV to 10 mV ac (16 to 460 Hz) ±5% ±5 digits |
| dc Millivolts Zeroing |
Up to 9.9 mV |
| Capacitance Measuring Range (BD422114, BD422111, BD422113) |
0.1 nF to 9.99 μF |
| Capacitance Accuracy (BD422114, BD422111, BD422113) |
3% ±2nF ±2 digits |
| Capacitance μF Zeroing (BD422114, BD422111, BD422113) |
Up to 10 nF |
| Milliamps Measuring Range (BD42270 and BD422112) |
0.1 mA to 500 mA (0 to 1000 mA on analog scale) |
| Milliamps Accuracy (BD42270 and BD422112) |
10 mA to 1999 mA dc or ac (50/60 Hz) ±2% ±3 digit; 0.1 mA to 10 mA dc or ac (50/60 Hz) ±2% ±5 digits; |
| 10 mA to 1999 mA ac (16 to 460 Hz) ±5% ±3 digit; 0.1 mA to 10 mA ac (16 to 460 Hz) ±5% ±5 digits |
| Frequency Measuring Range & Accuracy (BD42270 and BD422112) |
16 Hz to 460 Hz ±1% ±1 digit |
| Battery Type |
6 x 1.5 V Alkaline cells IEC LR6 Battery Life: Typically 3000, 5 second 1-kV tests |
| Dimensions/Weight |
1.77 H x 8.66 W x 4.33 D in. (45 H x 220 W x 70 D mm)/1.63 lbs (742 g) |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| BD422114 |
|
BMM80 |
|
INSULATION MULTIMETER WITH CAPACITANCE MEASUREMENT 50,100,250,500,1000V |
|
Yes |
|
2,581,200
|
| Includes test lead set, carrying case, switch test probe SP1 and download manager software. |
| BD422115 |
|
BMM503 |
|
250/500/1000 V Megger® Insulation and Continuity tester |
|
Yes |
|
1,490,400 |
| BD42270 |
|
BMM2000 |
|
INSULATION MULTIMETER WITH MILLIAMP AND FREQUENCY MEASUREMENT 250,500,1000V |
|
Yes |
|
1,620,000
|
| Includes test lead set, carrying case, switch test probe SP1 and download manager software. |
| BD422111 |
|
BMM2080 |
|
INSULATION MULTIMETER WITH CAPACITANCE MEASUREMENT 50,100,250,500,1000V |
|
Yes |
|
2,710,800
|
| Includes test lead set, carrying case, switch test probe SP1 and download manager software. |
| BD422112 |
|
BMM2500 |
|
INSULATION MULTIMETER WITH MILLAIMP AND FREQUENCY MEASUREMENT 250,500,1000V |
|
Yes |
|
1,836,000
|
| Includes test lead set, carrying case, switch test probe SP1 and download manager software. |
| BD422113 |
|
BMM2580 |
|
INSULATION MULTIMETER WITH MILLIAMP MEASUREMENT 50,100,250,500,1000V |
|
Yes |
|
2,926,800
|
| Includes test lead set, carrying case, switch test probe SP1 and download manager software. |
| |
