RLDLC00001 Dual Loop Controller

제조사 : DAVIS
제품번호:RLDLC00001
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

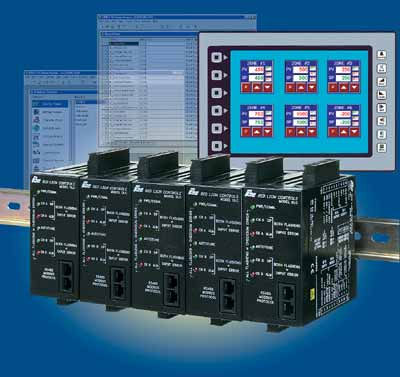

The Model DLC, Dual Loop Controller, is a full featured, DIN rail mounted, dual input PID controller.
The Model DLC, Dual Loop Controller, is a full featured, DIN rail mounted, dual input PID controller. The DLC is designed as a modular building block for multi-zone process control applications. The controller has two independent “A” & “B” input channels. Each channel’s input can be configured to accept a wide range of thermocouple, RTD, 0-10 V, 0/4-20 mA, or resistive signals. The two time-proportioning or DC Analog outputs can be programmed to control two independent processes. The two alarms per channel can be configured for various alarm modes, or provide a secondary control output for heat/cool applications.

Features
  • Two Independently configurable PID Control Loops per module
  • Modular Building Block for Multi-Zone Process Control
  • PID Control with Reduced Overshoot
  • Universal Inputs accept TC, RTD, 0-10 V and 0/4 to 20mA
  • On Demand Auto-Tuning of PID Settings
  • Two DC Analog Outputs (Optional)
  • Windows® Configuration Software
  • RS485 Modbus™ Protocol


CAT NO. MODEL DEscRIPTION AVAIL PRICE
RLDLC00001   DLC   Dual Loop Controller   Yes   645,840
RLDLC01001   DLC   Dual Loop Controller w/ 2 Analog Outputs   Yes   Call 031-777-1588
RLDLC0701   DLC   Dual Setpoint Controller w/ 2 Analog Outputs   Yes   Call 031-777-1588
RLSFDLC   SF   OPTIONAL PC Configuration Software for Windows FOR Dual Loop Controller   Yes   62,640



RLCBPRO007   CBRO   OPTIONAL Programmable Interface Cable FOR Dual Loop Controller   Yes   213,840
RLCBJ11BD5   CBJ   OPTIONAL 6" RJ-11 Jumper Cable FOR Dual Loop Controller   Yes   10,800
RLDRRJ11T6   DRR   OPTIONAL RJ11 to Terminal Adapter FOR Dual Loop Controller   Yes   64,800
