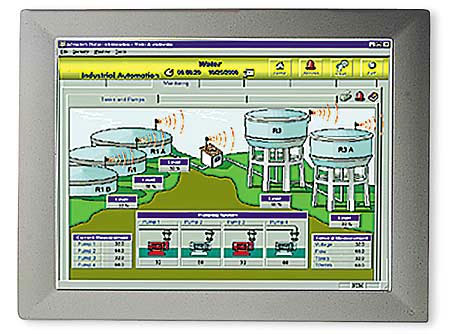

AN1260 12.1" TFT LCD display touch panel computer

제조사 : DAVIS
제품번호:AN1260
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

With a high quality TFT LCD display, the TPC adopts the Transmeta Crusoe 5400 processor as the core.
With a high quality TFT LCD display, the TPC adopts the Transmeta Crusoe 5400 processor as the core. It is a low power consumption x86 compliant processor with 500 MHz operating rate. This system is therefore designed to be fanless though the kernel is as powerful as we can imagine. In addition, spindle-free storage makes TPC a durable and reliable platform. For those applications that the demand on spindlefree storage is not critical, optional 2.5" slim type HDD can be used. It also provides a PC/104 plus expansion slot for applications in harsh environments.

SPECIFICATIONS
Construction Al-Mg and plastic molding
Display 12.1" SVGA TFT LCD or 15" XGA
CPU and core logic Transmeta® CrusoeTM 5400 (500 MHz)
BIOS Award® 256KB
VGA SMI® 710/712/721 VGA controller
DRAM 128 MB on board, among which 112 MB for users
Storage CompactFlash™ memory card or 2.5" HDD (freely bundled HDD kit for environments with extraordinary vibration)
I/O 3 or 4 serial ports (one configurable to RS-422/485) and RS-485 is auto flow controlled, 1 parallel port, 1 Ethernet port (10/100Base-T), 1 USB port, 2 PS/2 ports
Expansion one 32-bit PC/104-Plus expansion slot
Watchdog Timer 1.6 seconds interval
Power Input 24VDC, 0.8 A maximum
Dimensions (WxHxD) 311 x 237 x 50 mm (12.24" x 9.33" x 1.97") or 383 x 307 x 55m (15.08" x 12.09" x 2.17"
Weight 2.2kg (4.85 lbs) or 3.8kg (8.37 lbs.)
Boot-on-LAN support
Wake-on-LAN support
Remote file transfer
Remote Power On/Off Control LCD Specifications
Touchscreen
Type 4-wire, analog resistive
Resolution Continuous
Light transmission Above 75%
Life 100 million activation minimum

CAT NO. MODEL DEscRIPTION AVAIL PRICE
AN1260   TPC-1260T   12.1" TFT LCD display touch panel computer with Crusoe 5400 CPU, and 128 MB DRAM on board   Yes   4,741,200



AN1261   TPC-1260T-TE   12.1" commercid grade TFT LCD display touch panel computer with Crusoe 5400 CPU, and 128 MB DRAM on board   Yes   4,101,840



AN1262   TPC-1260T-EX   TPC-1260T-TE without touchscreen   Yes   3,661,200
AN1263   TPC-1260T-CE   TPC-1260T with Windows CE 3.0 OS on 32 MB CompactFlash™ memory card   Yes   5,173,200



AN1264   TPC-1560T   15" TFT LCD display touch panel computer with Crusoe 5400 CPU, and 128MB DRAM on board and resistive touchscreen   Yes   5,389,200



AN1265   TPC-1560T-CE   TPC-1560T with Windows CE 3.0 OS on 32MB CompactFlash™ memory card   Yes   6,253,200



AN1266   TPC-1560   OPTIONAL Desktop stand assembly FOR Touch Panel Computers   Yes   205,200
AN1267   PS-DC-24-50   OPTIONAL 50 watts 24 VDC output, 70/220 VAC 50/60 Hz input power adapter FOR Touch Panel Computers   Yes   114,480
