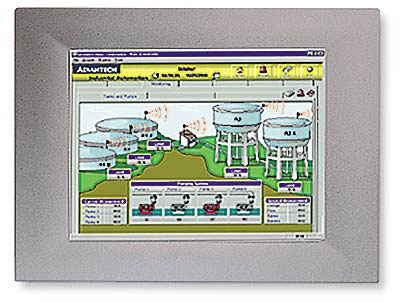

AN78810 5.7" QVGA STN Web-enabled

제조사 : DAVIS
제품번호:AN78810
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

WebOIT comes complete with everything needed to make a connection from your PLC to the internet
WebOIT comes complete with everything needed to make a connection from your PLC to the internet with Web-enabled automation technology. Utilizing its eAutomation features, the WebOIT allows you to connect back to the shop floor from anywhere in the world via a simple Internet connection. To receive machine and process data in real-time enables managers to monitor production, troubleshoot processes and diagnose equipment problems regardless of their location.

SPECIFICATIONS
CPU Intel® StrongARM 170 processor
Construction Plastic molding
RAM 16 MB DRAM on board
Flash 16 MB on board
Storage Supports one CompactFlash™ disk
Display Type STN color dot matrix type LCD
LCD Resolution Up to 320 x 240 @ 256 colors
Touch Screen 4-wire, analog resistive
Built-in Ethernet (LAN) 10Base-T interface
Serial Ports One serial RS-232 port, one serial RS-232/422/485
Port (DIP switch settings)
PS/2 keyboard/mouse connector Mini-DIN keyboard connectors
Water Resistance Front panel meets NEMA4 or IP65
Dimensions (W x H x D) 195 x 148 x 40 mm (7.68" x 5.83" x 1.57"
Weight 1.3 kg (2.86 lbs)

CAT NO. MODEL DEscRIPTION AVAIL PRICE
AN78810   WEBOIT-642   5.7" QVGA STN Web-enabled Operator Interface Terminal   Yes   2,581,200
AN78811   ASTUDIO-
WNT/DEV
  OPTIONAL Suidio for eAutomation Development Edition FOR Web-Enabled Operator Interface Terminal   Yes   2,149,200



AN78812   PS-DC24-50   OPTIONAL 70/220 VAC to 24 VDC, 50 watts power adapter FOR Web-Enabled Operator Interface Terminal   Yes   114,480
