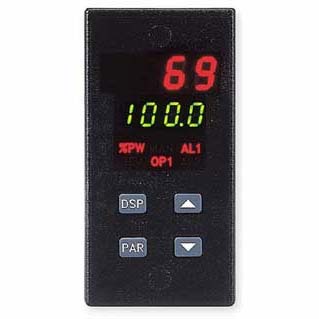

RLPCU10000 1/8 DIN Process Control Unit

제조사 : DAVIS
제품번호:RLPCU10000
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

All output modules are packaged separately and must be installed by the user.
* Note: Output modules ARE NOT supplied with the controller. All output modules are packaged separately and must be installed by the user. When selecting the controller, be sure to purchase the appropriate output module for the main control output and if necessary, the alarm output(s), the cooling output, and valve positioner outputs. The controller can be fitted with any combination of output modules. The logic/SSR Drive Module is a switched DC source, intended to drive the DC input of an SSR power unit. It should never be connected to line voltage.

Features
  • Accepts different types of process inputs (0- to 10VDC, 0/4 to 20 mA)
  • Full PID control with reduced overshoot
  • Status Indicators for outputs and control modes
  • Programmable user input (digital) for added flexibility
  • Manual/Automatic and local/remote setpoint control modes
  • Setpoint ramping for process start-up
  • Field replaceable and interchangeable output modules (Relay, Logic/SSR Drive and Triac)
  • 100 msec sampling period with 0.15% accuracy
  • On demand auto-tuning of PID control settings
  • Dual LED displays for simultaneous indication of process value and setpoint or second analog input

SPECIFICATIONS

Display

Dual 4-digit

Power

115/230 VAC (+10%, -15%)

48 to 62 Hz, 10 VA

Switch selectable

Controls

Four front panel push buttons for modifying and setup of controller functions and one external input for parameter lockout or other functions.

Environmental Conditions

Operating Temperature Range: 0 to 50°C
CAT NO. MODEL DEscRIPTION AVAIL PRICE
RLPCU10000   PCU   1/8 DIN Process Control Unit, Base Unit   Yes   581,040
RLPCU10001   PCU   1/8 DIN Process Control Unit, Alarm*   Yes   699,840
RLPCU10002   PCU   1/8 DIN Process Control Unit, Secondary*   Yes   721,440
RLPCU10104   PCU   1/8 DIN Process Control Unit, Alarm* & RS-485, remote setpoint   Yes   1,023,840
RLPCU7001   PCU   1/8 DIN Process Control Unit, Alarm* & Analog   Yes   807,840
RLPCU7002   PCU   1/8 DIN Process Control Unit, Secondary* & Analog   Yes   829,440
RLPCU7004   PCU   1/8 DIN Process Control Unit, Analog, Alarm* & RS-485   Yes   959,040
RLPCU7005   PCU   1/8 DIN Process Control Unit, Analog, Secondary* & RS-485   Yes   980,640
RLPCU1708   PCU   1/8 DIN Process Control Unit, Remote Setpoint, 4 to 20 Analog & Alarm*   Yes   980,640
RLOMD00000   　 　 OPTIONAL Relay Module, User Installed FOR Process Control Unit   Yes   30,240
RLOMD00001   　 　 OPTIONAL Triac Module, User Installed FOR Process Control Unit   Yes   58,320
RLOMD00003   　 　 OPTIONAL Logic/SSR Drive Module, User Installed FOR Process Control Unit   Yes   30,240



RLRLY50000   　 　 OPTIONAL SSR Power Unit, User Installed FOR Process Control Unit   Yes   140,400
RLCT005001   　 　 OPTIONAL 50:0.1 Ampere Current Transformer, User Installed FOR Process Control Unit   Yes   114,480



RLCT004001   　 　 OPTIONAL 40:0.1 Ampere Current Transformer, User Installed FOR Process Control Unit   Yes   105,840
