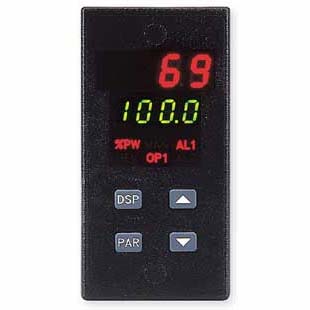

RLTCU10000 1/8 DIN Temperature Control Unit

제조사 : DAVIS
제품번호:RLTCU10000
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

All output modules are packaged separately and must be installed by the user.
* Note: Output modules ARE NOT supplied with the controller. All output modules are packaged separately and must be installed by the user. When selecting the controller, be sure to purchase the appropriate output module for the main control output and if necessary, the alarm output(s), the cooling output, and valve positioner outputs. The controller can be fitted with any combination of output modules. The logic/SSR Drive Module is a switched DC source, intended to drive the DC input of an SSR power unit. It should never be connected to line voltage.

Features
  • Accepts 10 different types of temperature sensor inputs (Thermocouple Types T, E, J, K, R, S, B, N, -5 to 56mV, 100 Ohm Platinum RTD, 120 Ohm Nickel RTD)
  • Full PID control with reduced overshoot
  • Status indicators for outputs and control modes
  • Programmable user input (digital) for added flexibility
  • Manual/Automatic and Local/Remote setpoint control modes
  • Setpoint ramping for process start-up.
  • Field replaceable and interchangeable output modules (Relay, Logic/SSR Drive and Triac)
  • 100 msec sampling period with 0.15% accuracy
  • On-demand auto-tuning of PID control settings
  • Dual LED displays for simultaneous indication of temperature and setpoint, second analog input or heater curren

SPECIFICATIONS

Display

 Dual 4-digit
Power 115/230 VAC (+10%, -15%),
48 to 62 Hz, 10 VA,
switch selectable
Controls Four front panel push buttons for modifying and setup of controller functions and one external input for parameter lockout or other functions.
Environmental Conditions Operating Temperature Range: 0 to 50°C
CAT NO. MODEL DEscRIPTION AVAIL PRICE
RLTCU10000   TCU   1/8 DIN Temperature Control Unit, Base Unit   Yes   581,040
RLTCU10001   TCU   1/8 DIN Temperature Control Unit, Alarm*   Yes   699,840
RLTCU10002   TCU   1/8 DIN Temperature Control Unit, Cooling Output* & Alarm*   Yes   721,440
RLTCU10104   TCU   1/8 DIN Temperature Control Unit, Remote Setpoint, Alarms* & RS-485   Yes   1,023,840



RLTCU10204   TCU   1/8 DIN Temperature Control Unit, Heater Current Monitor, Alarms and RS485   Yes   937,440



RLTCU7001   TCU   1/8 DIN Temperature Control Unit, Alarm* & Analog   Yes   807,840
RLTCU7002   TCU   1/8 DIN Temperature Control Unit, Cooling*, Alarm* & Analog   Yes   829,440
RLTCU7004   TCU   1/8 DIN Temperature Control Unit, Analog, Alarm* & RS-485   Yes   959,040
RLTCU7005   TCU   1/8 DIN Temperature Control Unit, Analog, Cooling* & RS-485   Yes   980,640
RLTCU1708   TCU   1/8 DIN Temperature Control Unit, Remote Setpoint, Analog & Alarm*, remote setpoint   Yes   980,640



RLOMD00000   　 　 OPTIONAL Relay Module, User Installed FOR Temperature Control Unit   Yes   30,240
RLOMD00001   　 　 OPTIONAL Triac Module, User Installed FOR Temperature Control Unit   Yes   58,320
RLOMD00003   　 　 OPTIONAL Logic/SSR Drive Module, User Installed FOR Temperature Control Unit   Yes   30,240
RLRLY50000   　 　 OPTIONAL SSR Power Unit, User Installed FOR Temperature Control Unit   Yes   140,400
RLCT005001   　 　 OPTIONAL 50:0.1 Ampere Current Transformer, User Installed FOR Temperature Control Unit   Yes   114,480



RLCT004001   　 　 OPTIONAL 40:0.1 Ampere Current Transformer, User Installed FOR Temperature Control Unit   Yes   105,840
