Doric

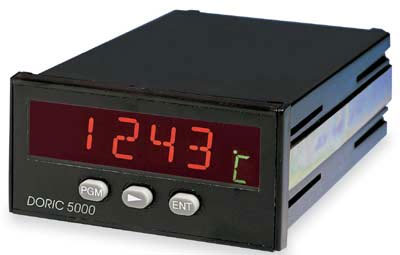

5000 Series Temperature/Process/Datalogger
|
- Fully
programmable and easy to use
- 4-digit
Alphanumeric Display
- Captures
MIN/MAX readings
- Inputs:
6 Thermocouple Types, J, K, T, E, R, S (5000T) 2 RTD Types
(5000R) 0-10VDC/ 4-20mA (5000D)
- Selectable
0.1/1.0 degree resolution
- 0-10VDC
or 4-20mA Fully scalable from –999 to +9999 (5000D)
- Scalable
Analog Output Options
- includes dual alarms
- 0-10 Volts (AV)
- 4-20 mA (AI)
- Dual
Alarm Option (AL)
- two 5A/120VAC Form C Relays
- On/Off Functions
- Automatic or Manual Alarm Latching Reset
- Set points include: High, Low, Deviation and Hysteresis (deadband)
- Multiple
Input Option (6 Inputs Thermocouple and Digital, 3 Inputs
RTD)
- Automatic or Manual Scanning
- LED Channel Indicator
- Individually Programmable Alarm Setpoints
- 5A/120VAC Form C relay contact available
|
| |
|
Custom
5000 Viewer Windows-Based Software (Standard with all Models)
|
- Configure,
program ,download, monitor, and logging
- RS232
communications
- View
all channel data, alarm status and MIN/MAX simultaneously
- Create
exportable data files
- Custom
I.D. tags
- Operates
with Windows 95, 98, and NT
|
| |
|
SPECIFICATIONS
|
500 Series
|
| Accuracy |
+/- 1 degree
+/-0.03%RDG |
| Size |
1/8 DIN |
| Repeatability |
+/- 1 count |
| Temperature
Stability |
Zero: 1uV/deg C;
SPAN: 0.01% rdg/deg C |
| Thermocouple
Reference Junction |
Internal,
automatic, .03 deg C per deg C, from 5 to 45 deg C |
| Break detect |
Upscale, 50nA, unit
displays OL |
| Stability with Time |
0.8 degree/year |
| CMRR |
120dB @ 50/60 Hz
with 250 ohm unbalance |
| NMRR |
60 dB @ 50/60 Hz |
| Input Impedance |
T/C:20Mohm,
RTD:16.9Kohm |
| A/D
Read Rate |
2 per second in
1deg mode; |
| 1 per second in 0.1
deg mode |
| Display |
alpha-numeric 4
digit, 14 segment red, 0.56" height |
| Operating Range |
0 to 50 degrees C |
| Multi-input option
accuracy |
Add +/- 0.5 deg C
to accuracy specification |
| Alarm Contact
Rating |
5 amps@ 120VAC form
C |
| Power |
100-240VAC (+/-
10%), 50-400Hz |
| Weight |
less than 1 pound |
| CAT
NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| VS5000 |
|
5000T-BA32 |
|
Thermocouple
indicator, single channel scanner/logger |
|
Yes |
|
753,840
|
| VS5001 |
|
5000T-MI32 |
|
Thermocouple
indicator, six channel scanner/logger |
|
Yes |
|
1,034,640
|
| VS5002 |
|
5000T-AV32 |
|
Thermocouple
indicator, single channel scanner/logger with analog output voltage |
|
Yes |
|
1,034,640
|
| VS5003 |
|
5000T-AI32 |
|
Thermocouple
indicator, single channel scanner/logger with analog output current |
|
Yes |
|
1,034,640
|
| VS5004 |
|
5000T-AL32 |
|
Thermocouple
indicator, single channel scanner/logger with dual alarm |
|
Yes |
|
926,640
|
| VS5005 |
|
5000R-BA32 |
|
RTD
indicator, single channel scanner/logger |
|
Yes |
|
775,440
|
| VS5006 |
|
5000R-MI32 |
|
RTD, three
channel scanner/logger |
|
Yes |
|
1,056,240
|
| VS5007 |
|
5000R-AV32 |
|
RTD
indicator, single channel scanner/logger with analog output voltage |
|
Yes |
|
1,056,240
|
| VS5008 |
|
5000R-AI32 |
|
RTD, single
channel scanner/logger with analog output current |
|
Yes |
|
1,056,240
|
| VS5009 |
|
5000R-AL32 |
|
RTD, single
channel scanner/logger with dual alarm |
|
Yes |
|
1,056,240
|
| VS5010 |
|
5000D-BA32 |
|
4-digit,
scalable process scanner/logger |
|
Yes |
|
753,840
|
| VS5011 |
|
5000D-MI32 |
|
4-digit,
scalable process scanner/logger, 6 channel |
|
Yes |
|
1,034,640
|
| VS5012 |
|
5000D-AV32 |
|
4-digit,
scalable process scanner/logger with analog output voltage |
|
Yes |
|
1,034,640
|
| VS5013 |
|
5000D-AI32 |
|
4-digit,
scalable process scanner/logger with analog output current |
|
Yes |
|
1,034,640
|
| VS5014 |
|
5000D-AL32 |
|
4-digit,
scalable process scanner/logger with dual alarm |
|
Yes |
|
926,640
|
| |
