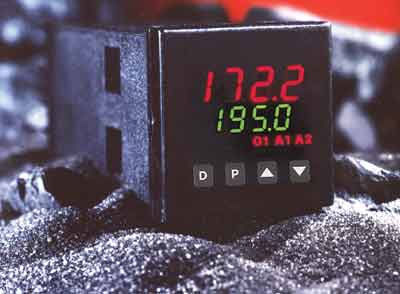

PID control with reduced overshoot, On-demand auto-tuning of PID control settings
Features
PID
control with reduced overshoot
On-demand
auto-tuning of PID control settings
Dual
LED displays for simultaneous indication of temperature and
setpoint
Status
indicators for outputs and control modes
Accepts
10 types of sensor inputs (Thermocouple Types T, E, J, K, R,
S, B, N, -5 to 56mV, 100Ohm Platinum RTD)
Optional
heater current monitor and heater break alarm
Manual/Automatic
control modes
Heating
and optional cooling outputs
Field
replaceable output board (Relay or Logic/SSR Drive)
Second
setpoint setting
Optional
remote setpoint input (0/4 to 20 mA)
SPECIFICATIONS
Display
Dual
4-digit
Power
AC
Versions: 85 VAC min. to 250 VAC max., 50 to 60 Hz, 8VA max.
DC
Versions: DC Power: 18 to 36 VDC; 7 W / AC Power: 24 VAC ± 10%; 50 to
60 Hz, 9 VA
Controls
Four
front panel push buttons for modification and setup of controller
functions and one external input user for parameter lockout or other
functions.
Environmental
Conditions
Operating
Range: 0 to 50°C
Certifications and
Compliances Safety
EN
61010-1, IEC 1010-1
UL Recognized Component, File #E156876 (M)
Recognized to U.S. and Canadian requirements under the
Component Recognition Program of Underwriters Laboratories, Inc.
Electromagnetic
Compatibility
Immunity
to EN 50082-2
Emissions
to EN 50081-2
CAT
NO.
MODEL
DEscRIPTION
AVAIL
PRICE
RLT4810000
T48
1/16 DIN
Temperature Controller, 1 Relay, 85-250VAC
Yes
408,240
RLT4810101
T48
1/16 DIN
Temperature Controller, 2 Relays & Analog, 85-250VAC
Yes
559,440
RLT4810107
T48
1/16 DIN
Temperature Controller, 2 Relays, Analog & RS485, 85-250VAC
Yes
645,840
RLT4810109
T48
1/16 DIN
Temperature Controller, 2 Relays, Heater Coil & RS485, 85-250VAC
Yes
645,840
RLT4810111
T48
1/16 DIN
Temperature Controller, 2 Relays & Analog, 18-36VDC/24VAC
Yes
594,000
RLT4810117
T48
1/16 DIN
Temperature Controller, 2 Relays, Analog & RS485, 18-36VDC/24VAC
Yes
691,200
RLT4810119
T48
1/16 DIN
Temperature Controller, 2 Relays, Heater Coil & RS485,
18-36VDC/24VAC
Yes
691,200
RLT481702
T48
1/16 DIN
Temperature Controller, 3 Relays & RS-485, 85-250VAC
Yes
624,240
RLT481170
T48
1/16 DIN
Temperature Controller, 3 Relays, 18-36VDC/24VAC
Yes
529,200
RLT4811112
T48
1/16 DIN
Temperature Controller, 3 Relays & RS-485, 18-36VDC/24VAC
Yes
658,800
