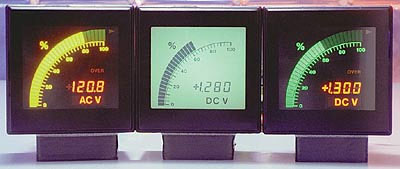

Three types of color liquid crystal display (LCD) are available
The Model 2302 is a
new panel meter for highly accurate digital measurement which features
not only a digital display but an analog bar-graph display also. Three
types of color liquid crystal display (LCD) are available: Green, yellow
and monochromatic. This unique display, combined with multiple input
ranging cards, allows the user the flexibility to configure the exact
display to fit almost any application. Direct display of AC and DC
voltages and current, monitors for temperature, flow, power, pressure,
speed and rate.
Please specify
range, display color and power supply voltage when ordering.
Features
Analog
and Digital display
Ranges:
DC Volts 2VDC to 300VDC, AC Volts 2VAC to 300VAC, DC Amperes
1mA to 2ADC, AC Amperes 1mA to 5AAC
Process
signals 4-20mA, 1-5VDC
Specialized
scaling for engineering units
Power
supply options: 12VDC (standard), 85-132VAC, 105-170VDC,
170-234VAC and 24VDC
SPECIFICATIONS
RANGES (CHOOSE 1)
DC Voltmeter
2, 10, 15, 20, 30,
50, 100, 150, 200 and 300V
AC Voltmeter
2, 10, 15, 20, 30,
50, 100, 150, 200 and 300V
DC Ammeter
1, 5, 10, 50, 100,
200 300 and 500mA, 1 and 2Amp
AC Ammeter
1mA, 1A and 5A
DISPLAYS
(CHOOSE #1, #2 OR #3)
#1
Green analog scale,
red digital display
#2
Yellow analog
scale, red digital display
#3
Monochromatic
display (readable even without backlighting)
POWER
SUPPLY VOLTAGE (CHOOSE #1 OR #2)
#1
12 VDC
#2
24 VDC
Dimensions
Panel Cutout:
3.62" x 3.62", 2.86" Depth
CAT
NO.
MODEL
DEscRIPTION
AVAIL
PRICE
YK242581
2302-1-*-*
DC
VOLTMETER/AMMETER 2302-1 *SPECIFY INPUT,DISPLAY,PWR*
Yes
421,200
YK242582
2302-2
AC
VOLTMETER/AMMETER 2302-2 *INPUT/DISPLAY COLOR/POWER*
Yes
447,120
YK242583
B9136NH
OPTIONAL
POWER SUPPLY
Yes
153,360
