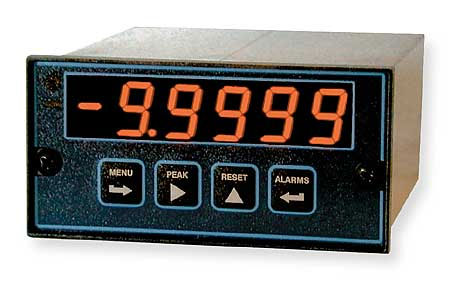

LA282100 Load cell, green LED, 85-264Vac power

제조사 : DAVIS
제품번호:LA282100
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

A stable display is assured by programmable digital filtering.
Used as a microvoltmeter, this meter provides five factory-precalibrated scales from ±20.000 mV to ±500.00 mV. A stable display is assured by programmable digital filtering.

Load cell operation can utilize 6-wire ratiometric hookup to eliminate variations in lead resistance and allow long cable runs. An isolated excitation output of 120 mA at 10 V is provided to power up to four 350 ohm load cells in parallel. Programmable zero and span adjustments allow direct readout in engineering units, such as PSI or LBS. Tare is standard for weighing applications.

Features
  • ±99999 display span
  • 0.01% error
  • Ranges user-selectable & factory precalibrated
  • Read rate to 60/sec with adaptive averaging filter
  • Isolated 5, 10, 24 Vdc excitation output
  • 4- or 6-wire ratiometric hookup
  • Scalable in engineering units
  • 1/8 DIN, NEMA-4X front panel

SPECIFICATIONS
Display -99,999, 0.56" high LED digits
Zero & Span ±99,999 (programmable)
Read Rate To 60/sec with adaptive digital filtering
Accuracy <0.01% FS ± 1 ct error</font>
Excitation 5V @ 100 mA, 10V @ 120 mA, 24V@ 50 mA
Ranges (mV) ±20.000, ±50.000, ±100.00, ±250.00, ±500.00

CAT NO. MODEL DEscRIPTION AVAIL PRICE
LA282100   L10000WM   Load cell, green LED, 85-264Vac power   Yes   615,600
LA282101   L20000WM   Load cell, red LED, 85-264Vac power   Yes   615,600
LA282103   L7000WM   Load cell, green LED, 9-37 Vdc power   Yes   637,200
LA282104   L21000WM   Load cell, red LED, 9-37 Vdc power   Yes   637,200
LA282105   LDR   OPTIONAL Dual 10A Form C relays FOR Load Cell & Microvolt Meter   Yes   172,800
(same slot as LA282106)
LA282106   LOC   OPTIONAL Dual isolated solid state relays FOR Load Cell & Microvolt Meter   Yes   118,800



(same slot as LA282105)
LA282107   LAO   OPTIONAL Isolated analog output, 0-20 mA & 0-10 V, scalable FOR Load Cell & Microvolt Meter   Yes   194,400



LA282108   L232   OPTIONAL RS-232 data I/O FOR Load Cell & Microvolt Meter   Yes   129,600
(same slot at LA282109)
LA282109   L485   OPTIONAL RS-485 data I/O FOR Load Cell & Microvolt Meter   Yes   172,800
(same slot at LA282108)
