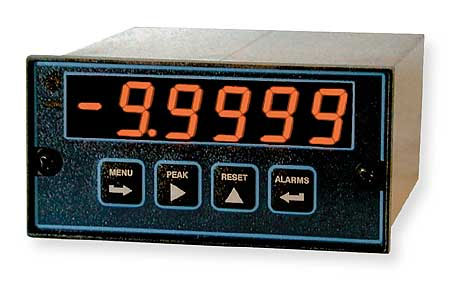

The Temperature Meter provides exceptional accuracy for seven thermocouple types
The Temperature
Meter provides exceptional accuracy for seven thermocouple types and
100-ohm platinum RTDs. The sensor type, unit of measure (°C or °F),
and resolution (1° or 0.1°) are user selectable.
The connection to RTDs can be via 2-, 3- or 4-wire hookup to compensate
for lead resistance. With the dual setpoint controller option, the meter
becomes a fast ON/OFF temperature controller. With the analog or serial
data output options, it becomes en exceptionally accurate, isolated,
linearized temperature transmitter.
Features
Selectable
thermocouples types J, K, T, E, N, R, S
Selectable
100-ohm RTDs with DIN or ANSI curves
Selectable
1° or 0.1° resolution and °C or °F scale
RTD
excitation with 2, 3 or 4-wire connection
Read
rate to 60/sec with adaptive averaging filter
1/8
DIN, NEMA-4X front panel
Screw-clamp
connectors
Optional
isolated analog output linearized to display
Optional
isolated analog output linearized to display
