RLC48CS003 1/16 DIN 1 Preset Counter

제조사 : DAVIS
제품번호:RLC48CS003
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Model C48 Counter is available as a Standard Counter or a Batch Counter.
The Model C48 Counter is available as a Standard Counter or a Batch Counter. The Standard Counter is available with single or dual presets. The Batch Counter has a main process counter with dual presets and a secondary counter with a single preset. The secondary counter can be selected to function as a batch or a total counter.

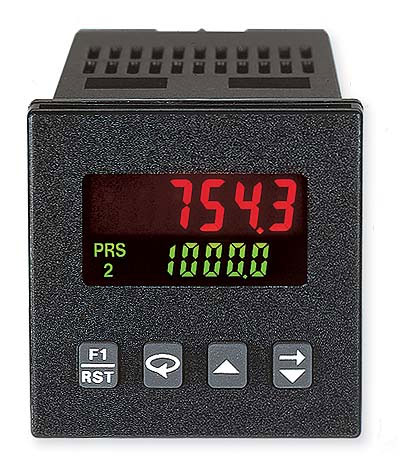

The C48C features a 7 segment, 2 line by 6 digit reflective or backlit LCD display. For the backlit versions, the main display line is red and shows the count value or the Batch/Total value when preset 3 or output 3 is viewed in the secondary display. The smaller secondary display line is green and can be used to view the prescaler value, preset values, output time values or Batch/Total count values (Batch model).


Features
  • LCD, 7 segment, 2 line, 6 digit display, positive reflective or negative transmissive models with red top line and green bottom line
  • Quadrature sensing (Up to 4 times resolution)
  • Bi-Directional counting, up/down control
  • Field replaceable relay output boards
  • Status indicators for outputs
  • NEMA 4X/IP65 sealed bezel
  • Parameter security via programmable operator access privileges and protected value menu
  • Programmable user inputs and front panel function key
  • Horizontal or vertical stacking of multiple units
  • 85 to 250 VAC or 18 to 36 VDC/24 VAC powered units
  • RS485 serial communications option
  • Choice of numeric data entry modes
  • UL Recognized Component, File # E137808


CAT NO. MODEL DEscRIPTION AVAIL PRICE
RLC48CS003   C48CS   1/16 DIN 1 Preset Counter, Reflective LCD - OUTPUTS: 1 NPN O.C., 1 Relay - POWER: 85-250VAC   Yes   343,440



RLC48CS013   C48CS   1/16 DIN 1 Preset Counter, Backlit LCD - OUTPUTS: 1 NPN O.C., 1 Relay - POWER: 18-36VDC/24VAC   Yes   365,040



RLC48CD007   C48CD   1/16 DIN 2 Preset Counter, Reflective LCD - OUTPUTS: 2 Relay, RS485 - POWER: 85-250VAC   Yes   434,160



RLC48CD017   C48CD   1/16 DIN 2 Preset Counter, Reflective LCD - OUTPUTS: 2 Relay, RS485 - POWER: 18-36VDC/24VAC   Yes   455,760



RLC48CD107   C48CD   1/16 DIN 2 Preset Counter, Backlit LCD, OUTPUTS: 2 Relay, RS485 - POWER: 85-250VAC   Yes   455,760



RLC48CD117   C48CD   1/16 DIN 2 Preset Counter, Backlit LCD - OUTPUTS: 2 Relay, RS485 - POWER: 18-36VDC/24VAC   Yes   477,360



RLC48CP005   C48CP   1/16 DIN 2 Preset Counter w/ prescaler output, Reflective LCD - OUTPUTS: 2 NPN O.C., RS485, POWER: 85-250VAC   Yes   451,440



RLC48CP015   C48CP   1/16 DIN 2 Preset Counter w/ prescaler output, Reflective LCD - OUTPUTS: 2 NPN O.C., RS485 - POWER: 18-36VDC/24VAC   Yes   473,040
RLC48CP105   C48CP   1/16 DIN 2 Preset Counter w/ prescaler output, Backlit LCD - OUTPUTS: 2 NPN O.C., RS485 - POWER: 85-250VAC   Yes   473,040



RLC48CP115   C48CP   1/16 DIN 2 Preset Counter w/ prescaler output, Backlit LCD - OUTPUTS: 2 NPN O.C., RS485 - POWER: 18-36VDC/24VAC   Yes   494,640



RLC48CB008   C48CB   1/16 DIN 3 Preset Batch Counter, Reflective LCD - OUTPUTS: 1 NPN O.C., 2 Relays, RS485 - POWER: 85-250VAC   Yes   455,760



RLC48CB108   C48CB   1/16 DIN 3 Preset Batch Counter, Backlit LCD - OUTPUTS: 1 NPN O.C., 2 Relays, RS485 - POWER: 85-250VAC   Yes   477,360



RLSFC48   SFC48   OPTIONAL Windows Configuration Software for C48 Meters (3.5" Disk) FOR 1/16 DIN Preset Counters   Yes   Call 031-777-1588
