Versatile AC
digital power meters. The design of POWER fills the need for a high
accuracy digital switchboard meter with transducer outputs that can be
configured in the field by an end-user, or when installed in new
electrical equipment by an OEM.
It eliminates requirements for a large inventory of dedicated
instruments, and provides flexibility when new panel designs or system
upgrades require changes in instrument transformer ratings. Our rugged
metal case fits standard panel cutouts for switchboard meters and makes
it a perfect replacement for less versatile instruments. They can also
replace separate power transducers and meters in new equipment designs.
An overall good solution for reduced wiring, panel space reduction,
improved accuracy, and lower cost. |
| |
|
Features
|
- Scaling
for PT (potential transformer) primary ratings up to 1250:1
CT (current transformer) primary ratings up to 5000:1
- True
RMS current and voltage measuring capability
- Accuracy:
+ 0.2% of reading; + 0.1% of full scale
- Settings
stored in non-volatile memory and retained through loss of
power
- Electrical
legends (Watts, Kilowatts, Megawatts) can be set by user and
indicated by a red LED adjacent to the legend
- Adjustable
transducer output proportional to the primary input setting
- Display
average setting: "rolling average" of inputs
reduces "digit bounce"
- Available
Models:
– Single Displays - 2491 SERIES
– AC Volts, Amps, Watts, VARs, Power Factor, Phase
Angle, and Frequency

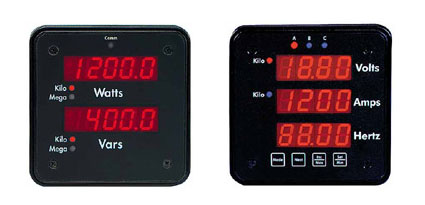

- Dual
Displays - 2492 SERIES
– Volt-Amp, Volt-Freq, Watt-VAR, Watt-Power Factor
- Triple
Displays - 2493 SERIES
– 3 Volts, 3 Amps, Volt-Amp-Freq, Watt-VAR-Power
Factor. Now Available with Modbus Option
- All
watt, VAR, power factor and phase angle models are available
single phase; single phase, three wire; three phase, three
wire; and three phase, four wire, (2 1/2 and 3 element)
|
| |
|
| CAT
NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| YK24912 |
|
2491151
AHD1 |
|
Single
display AC Amps, 5 Amp Input, 50/60 Hz, 4-20mA output, RS-485 |
|
Yes |
|
918,000
|
| YK24913 |
|
2491251
AHD1 |
|
Single
display AC Volts/ 300 V AC Input, 50/60 Hz, 4-20mA output, RS-485 |
|
Yes |
|
918,000
|
| YK24914 |
|
2491831
AHD1 |
|
Single
display Frequency Input (300 V Rating), 50/60 Hz, 4-20mA output, RS-485 |
|
Yes |
|
918,000
|
| YK24915 |
|
249155255
AHD1 |
|
Single
display AC Watts 3P4W (3 Element), 120 V/5 A Input, 50/60 Hz, 4-20mA
output, RS-485 |
|
Yes |
|
1,501,200
|
| YK24916 |
|
279155255
AHD1 |
|
Single
display VARS 3P3W, 120 Volt / 5 Amp Input, 50/60 Hz, 4-20mA output,
RS-485 |
|
Yes |
|
1,501,200
|
| YK24917 |
|
2492171
AHD11 |
|
Dual display
AC Volt / Amp Dual function, 300 V / 5 A , AC Input, 50/60 Hz, 4-20mA
output, RS-485, 120 V Aux. Power |
|
Yes |
|
1,220,400
|
| YK24918 |
|
249244175
AHD12 |
|
Dual display
AC Watt / Var Dual function, 3P4W |
|
Yes |
|
1,220,400
|
| (3
Element) 240 V / 5 A AC Input, 50/60 Hz, 4-20mA output, RS-485, 240 V
Aux. Power |
| YK24919 |
|
24933721
AHD11 |
|
Triple
display AC Watt/ Var / Power Factor (2 1/2 Element) |
|
Yes |
|
1,868,400
|
| 120V
/ 5A ACInput, 50/60 Hz, 4-20mA output, RS-485, 120 V Aux. Power |
| YK24920 |
|
24930941
AHD11 |
|
Triple
display AC Volt/ Amp / Hertz 3P4W, 300V / 5A AC Input, 50/60 Hz, 4-20mA
output, RS-485, 120 V AC Aux. Power |
|
Yes |
|
1,725,840
|
| |
