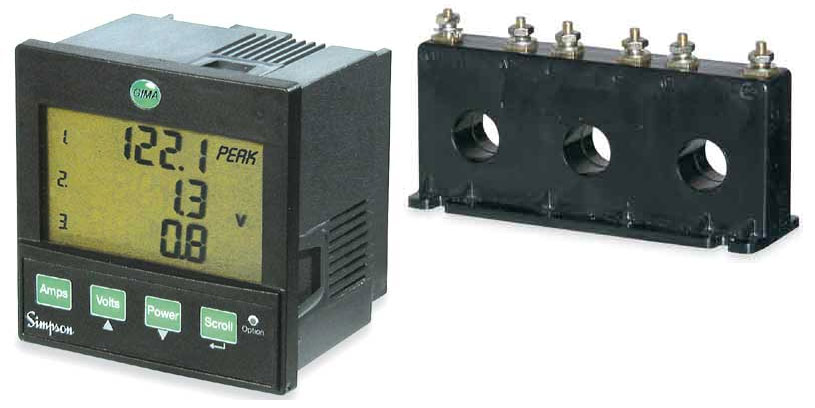

A three-phase terminal style current transformer can be used with all the GIMA three-phase meters.
Three-Phase
Current Transformer
A three-phase terminal style current transformer can be used with all
the GIMA three-phase meters. Simpson’s three-phase current transformer
can be used to monitor AC current when the current level is too high for
the meter. The current transformer is equipped with terminals to permit
easy connection to the GIMA units. These terminals are #8-32 brass studs
and come with a flatwasher, lockwasher and a regular nut (leads are not
provided).
Option
Modules
Modbus module adds multi-drop serial communications to any GIMA® meter.
The device uses a high speed microprocessor to extract information from
the meter and interface to an industry standard modbus® system
Analog
output module
Analog output module adds four DC 4-20 mA analog outputs to any GIMA®
Meter. All outputs are isolated from the metering elements to provide
safe connection to external systems.
Features
Four
Model Types Designed to fit a Wide Range of Applications
One
Meter to Measure All Your Values
DIN (96
x 96 mm) Case Needing Only 2.80” (71 mm) Behind the Panel
Easy
Installation - Software Detection/Correction of Wiring
Errors
Wide
Backlit LCD Display for Easy Viewing
Easy
and Safe to Use - Four Keys Select All Parameters
The
three-phase terminal-style transformer can be used with all
GIMA meters to monitor AC current when the current level is
too high for the meter
SPECIFICATIONS
Series
1
Series
2
Series
3
Series
4
Phase Amps
•
•
•
•
Phase Volts
•
•
•
•
Line Volts
•
•
•
•
Per phase PF
•
•
•
•
Per phase kW
•
•
•
•
Per phase kvar
•
•
Per phase kVA
•
3 Phase PF
•
•
•
•
3 Phase kW
•
•
•
•
3 Phase kvar
•
•
3 Phase kva
•
Frequency
•
•
•
•
kWh
•
•
•
Capacitive kvarh
•
•
Inductive kvarh
•
•
Total kvarh
•
•
Import kVah
•
Current Demand
•
•
•
•
Voltage Demand
•
•
•
•
kW Demand
•
•
Peak Amps
•
Peak Phase Volts
•
Peak Current Demand
•
•
•
•
Peak Voltage Demand
•
•
•
•
Neutral Current
•
CAT
NO.
MODEL
DEscRIPTION
AVAIL
PRICE
SE1001110
G100-1-1-1-0
Three Phase
Panel Meter, GIMA 100-120/208V Input
Yes
935,280
SE1001310
G100-1-3-1-0
Three Phase
Panel Meter, GIMA 100-277/480V Input
Yes
935,280
SE2001110
G200-1-1-1-0
Three Phase
Panel Meter, GIMA 200-120/208V Input
Yes
1,043,280
SE2001210
G200-1-2-1-0
Three Phase
Panel Meter, GIMA 200-120/240V Input
Yes
1,043,280
SE2001310
G200-1-3-1-0
Three Phase
Panel Meter, GIMA 200-277/480V Input
Yes
1,043,280
SE2001410
G200-1-4-1-0
Three Phase
Panel Meter, GIMA 200-63/70V Input
Yes
1,043,280
SE3001110
G300-1-1-1-0
Three Phase
Panel Meter, GIMA 300-120/208V Input
Yes
1,151,280
SE3001310
G300-1-3-1-0
Three Phase
Panel Meter, GIMA 300-277/480V Input
Yes
1,151,280
SE4001110
G400-1-1-1-0
Three Phase
Panel Meter, GIMA 400-120/208V Input
Yes
1,306,800
SE4001310
G400-1-3-1-0
Three Phase
Panel Meter, GIMA 400-277/480V Input
Yes
1,306,800
SE37026
37026
Current
Transformer, 50:5 Three-Phase
Yes
162,000
SE37027
37027
Current
Transformer, 100:5 Three-Phase
Yes
162,000
SE37028
37028
Current
Transformer, 150:5 Three-Phase
Yes
162,000
SE37029
37029
Current
Transformer, 200:5 Three-Phase
Yes
162,000
SE37030
37030
Current
Transformer, 300:5 Three-Phase
Yes
162,000
SE46240
46240
OPTIONAL
Standard Modbus® FOR
Three Phase Panel Meters
Yes
432,000
SE46241
46241
OPTIONAL
All Value Modbus®
FOR Three Phase Panel Meters
Yes
594,000
SE47130
47130
OPTIONAL
Analog Output FOR
Three Phase Panel Meters
Yes
635,040
