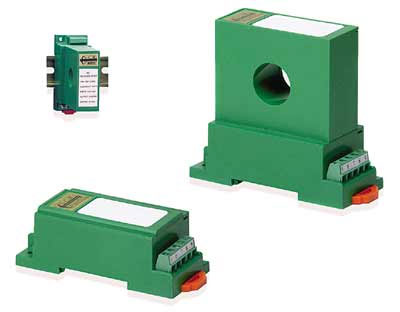

CR52105 DC Current In 0-5VDC out

제조사 : DAVIS
제품번호:CR52105
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

These devices are for direct current only, targeted towards general DC current sensing.
The CR5200 Series DC Current Transducers are designed to output a DC signal which is proportional to a DC current input signal. These devices are for direct current only, targeted towards general DC current sensing.

The CR5400 Series AC/DC Current Transducers provide a bipolar output that proportionally reflects the input bipolar current. These devices are specifically designed to be used in applications where multi-mode current sensing is required.

The CR5300 Series DC Voltage Transducers provide an output DC signal that is proportional to the input DC Voltage. These devices are focused to provide an easy solution to DC Voltage instrumentation needs.


Applications
  • Battery Chargers and Systems
  • DC Motor Drives
  • Power Supply Management
  • Mobile Applications
  • Power Sensing
  • Inverter and Multi-Frequency Drives (AC/DC)
  • Multi-mode Ground Paths with AC and DC (AC/DC)
  • Panel or DIN Rail mounts

SPECIFICATIONS

Basic Accuracy

±0.5% Full Scale
Thermal Drift 500 PPM/°C
Operating Temperature 0 to 50 °C
MTBF >100,000 Hrs
Response Time 250 mS
Insulation Voltage 2500 VDC
Supply Voltage 24 VDC
Frequency Range 20 - 5 KHz
Output Loading 0-5 VDC > 2000 Ohm
4-20 mA 0 - 300 Ohm
Case Dimensions 2.99" H x 3.27" W x 1.42" D
Hole Sizes 0.26" Diameter

CAT NO. MODEL DEscRIPTION AVAIL PRICE
CR70005   CR7000-5   DC Current In 0-5VDC out (0-5 Amps)   Yes   197,661
CR700020   CR7000-20   DC Current In 0-5VDC out (0-20 Amps)   Usually ships in 7 to 10 days   197,661
CR700050   CR7000-50   DC Current In 0-5VDC out (0-50 Amps)   Usually ships in 7 to 10 days   197,661
CR52205   CR5220-5   DC Current In 4-20mA DC out (0-5 Amps)   Usually ships in 7 to 10 days   235,310
CR522020   CR5220-20   DC Current In 4-20mA DC out (0-20 Amps)   Usually ships in 7 to 10 days   235,310
CR522050   CR5220-50   DC Current In 4-20mA DC out (0-50 Amps)   Usually ships in 7 to 10 days   235,310
CR54105   CR5410-5   AC/DC Current Transducer (0-5A)   Usually ships in 7 to 10 days   197,661
CR541020   CR5410-20   AC/DC Current Transducer (0-20A)   Usually ships in 7 to 10 days   197,661
CR541050   CR5410-50   AC/DC Current Transducer (0-50A)   Usually ships in 7 to 10 days   197,661
CR531050   CR5310-50   DC Voltage in 0-5VDC out 0-50V   Usually ships in 7 to 10 days   293,760
CR5310200   CR5310-200   DC Voltage in 0-5VDC out 0-200V   Usually ships in 7 to 10 days   293,760
CR532050   CR5320-50   DC Voltage in 4-20mA DC out 0-50V   Usually ships in 7 to 10 days   315,792
CR5310200   CR5310-200   DC Voltage in 0-5VDC out 0-200V   Usually ships in 7 to 10 days   293,760
