MS121181 LTCE CT Transducer

제조사 : DAVIS
제품번호:MS121181
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

AC Current up to 5 Amps, AC Voltage up to 550 Volts, M4 screw terminals, True RMS sensing

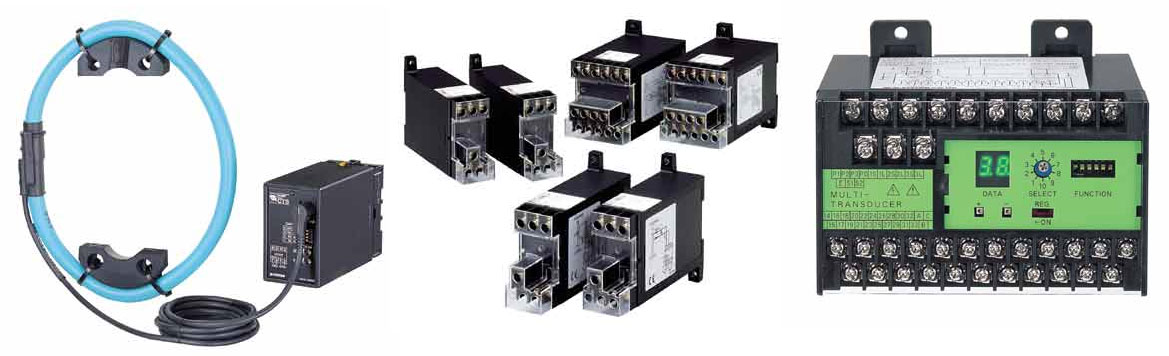

LT-Unit Series
  • AC Current up to 5 Amps
  • AC Voltage up to 550 Volts
  • M4 screw terminals
  • True RMS sensing
  • Additional pulse rate output for totalizing counter (watt transducer)
  • Conforms to IEC 688
  • CE Marking

LSMT2
  • Compact design
  • 10 analog outputs and 1 WH pulse output
  • Free selection of measuring items, and any output channel
  • Transducer input range selectable (Watt, Var, Power Factor or Frequency)
  • Linear output for bi-directional current (Var and Power Factory)

CTS
  • Max. 3000 Amps
  • Rogowski coil type probe ensures stable measurement
  • Flexible current probe can be clipped around a conductor without disconnecting the conductor
  • Can accept a wide input frequency band: 4 Hz up to 10kHz
  • Measurement in tight places as never before possible

CAT NO. MODEL DEscRIPTION AVAIL PRICE
MS121181   LTCE CT Transducer       Yes   345,600
Input Type   AC Current
Input Range (fixed range, please specify)   0-1A, 0-2A, 0-5A AC
Output (fixed range)   1-5V, 4-20mA
MS121182   LTPE PT Transducer       Yes   367,200
Input Type   AC Voltage
Input Range (fixed range, please specify)   0-150V, 0-300V, 0-550V AC
Output (fixed range)   1-5V, 4-20mA
MS121183   LTWT Power Transducer       Yes   637,200
Input Type   PT, CT (3-phase/3-wire)
Input Range (fixed range, please specify)   -1000 to +1000W
Output (fixed range)   1-5V, 4-20mA with pulse totalizer
MS121184   LSMT2-1 Multi Power Transducer       Yes   2,721,600



Input Type   PT, CT (3-phase/3-wire)
Input Range (fixed range, please specify)   0-1A, 0-2A, 0-5A AC
Output (fixed range)   1-5V, 4-20mA
MS121185   LSMT2-2       Yes   2,721,600
Input Type   Single Phase/2 Wire
Input Range (fixed range, please specify)   0-150V, 0-300V, 0-550V AC
Output (fixed range)   Pulse totalizer
MS121186   LSMT2-3       Yes   2,721,600
Input Type   Single Phase/3 Wire
Input Range (fixed range, please specify)   -1000 to +1000W
Output (fixed range)   —
MS121187   LSMT2-4       Yes   2,808,000
Input Type   Single Phase/4 Wire
Input Range (fixed range, please specify)   -1000 to +1000Var
Output (fixed range)   —
Modbus           Yes   Call 031-777-1588
MS121190   CTS High AC Current Transmitter       Yes   1,922,400
Input Type   High AC Current
Input Range (fixed range, please specify)   0-300A AC, 0-3000A AC
Output (fixed range)   1-5V, 4-20mA
