CR6210500 Single phase 0-5VDC Out,0-500V,5A

제조사 : DAVIS
제품번호:CR6210500
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

These devices are specifically targeted to provide an efficient solution to most power sensing needs.

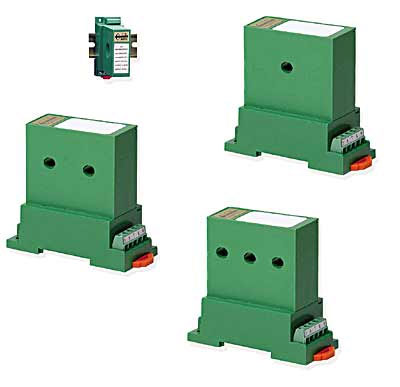

The CR6200 Series Power Transducers and Transmitters are designed to provide a controlled output that is proportional to the average being drawn from an AC power source. These devices are specifically targeted to provide an efficient solution to most power sensing needs.

Applications
  • Energy Management
  • Motor Efficiency
  • Multi-point power sensing
  • Remote power sensing over long distances
  • Panel or DIN Rail mounts

SPECIFICATIONS

Basic Accuracy

 0.5% Full Scale
Thermal Drift 500 PPM/°C
Operating Temperature 0 to 50 °C
MTBF >100,000 Hrs
Response Time 250 mS
Insulation Voltage 2500 VDC
Supply Voltage 12 VDC
Frequency Range 20 - 5 KHz
Output Loading 0-5 VDC > 2000 Ohm
4-20 mA 0 - 300 Ohm
Case Dimensions 2.99" H x 3.27" W x 1.42" D
Hole Sizes 0.26" Diameter

CAT NO. MODEL DEscRIPTION AVAIL PRICE
CR6210500   CR6210-500-5   Active Power Transducer Single phase 0-5VDC Out, 0-500V, 5A   Usually ships in 7 to 10 days   378,000
CR6210150   CR6210-150-20   Active Power Transducer Single phase 0-5VDC Out, 0-150V, 20A   Usually ships in 7 to 10 days   378,000
CR6220500   CR6220-500-5   Active Power Transducer Single phase 4-20mADC Out, 0-500V, 5A   Usually ships in 7 to 10 days   429,840
CR6220150   CR6220150-20   Active Power Transducer Single Single phase 4-20mADC Out, 0-150V, 20A   Usually ships in 7 to 10 days   429,840
CR6230500   CR6230-500-5   Active Power Transducer Single 3 phase 3 wire 0-5VDC Out, 0-500V, 5A   Usually ships in 7 to 10 days   572,400
CR6230150   CR6230-150-20   Active Power Transducer Single 3 phase 3 wire 0-5VDC Out, 0-150V, 20A   Usually ships in 7 to 10 days   572,400
CR6240500   CR6240-500-5   Active Power Transducer Single 3 phase 3 wire 4-20mADC Out, 0-500V, 5A   Usually ships in 7 to 10 days   615,600
CR6240150   CR6240-150-20   Active Power Transducer Single 3 phase 3 wire 4-20mADC Out, 0-150V, 20A   Usually ships in 7 to 10 days   615,600
CR6250500   CR6250-500-5   Active Power Transducer Single 3 phase 4 wire 0-5VDC Out, 0-500V, 5A   Usually ships in 7 to 10 days   745,200
CR6250150   CR6250-150-20   Active Power Transducer Single 3 phase 4 wire 0-5VDC Out, 0-150V, 20A   Usually ships in 7 to 10 days   745,200
CR6260500   CR6260-500-5   Active Power Transducer Single 3 phase 4 wire 4-20mADC Out, 0-500V, 5A   Usually ships in 7 to 10 days   799,200
CR6260150   CR6260-150-20   Active Power Transducer Single 3 phase 4 wire 4-20mADC Out, 0-150V, 20A   Usually ships in 7 to 10 days   799,200
CR6211500   CR6211-500-5   Reactive Power Transducer Single phase 0-5VDC Out, 500V, 5A   Usually ships in 7 to 10 days   378,000
CR6211150   CR6211-150-20   Reactive Power Transducer Single phase 0-5VDC Out, 150V, 20A   Usually ships in 7 to 10 days   378,000
CR6221500   CR6221-500-5   Reactive Power Transducer Single phase 4-20 mADC, 500V, 5A   Usually ships in 7 to 10 days   429,840
CR6221150   CR6221-150-20   Reactive Power Transducer - Single phase 4-20mADC, 150V, 20A   Usually ships in 7 to 10 days   429,840
CR6231500   CR6231-500-5   Reactive Power Transducer - 3 phase 3 wire 0-5VDC Out, 500V, 5A   Usually ships in 7 to 10 days   572,400


CR6231150   CR6231-150-20   Reactive Power Transducer - 3 phase 3 wire 0-5VDC Out, 150V, 20A   Usually ships in 7 to 10 days   572,400


CR6241500   CR6241-500-5   Reactive Power Transducer - 3 phase 3 wire 4-20mADC Out, 500V, 5A   Usually ships in 7 to 10 days   615,600


CR6241150   CR6241-150-20   Reactive Power Transducer - 3 phase 3 wire 4-20mADC Out, 150V, 20A   Usually ships in 7 to 10 days   615,600


CR6251500   CR6251-500-5   Reactive Power Transducer - 3 phase 4 wire 0-5VDC Out, 500V, 5A   Usually ships in 7 to 10 days   745,200


CR6251150   CR6251-150-20   Reactive Power Transducer - 3 phase 4 wire 0-5VDC Out, 150V, 20A   Usually ships in 7 to 10 days   745,200


CR6261500   CR6261-500-5   Reactive Power Transducer - 3 phase 4 wire 4-20mADC Out, 500V, 5A   Usually ships in 7 to 10 days   799,200


CR6261150   CR6261-150-20   Reactive Power Transducer - 3 phase 4 wire 4-20mADC Out, 150V, 20A   Usually ships in 7 to 10 days   799,200
