MS121215 DC Current, Voltage
|
| Slim 18mm Housing,Plug-In Din Terminals,1500VAC input/output isolation
|
|

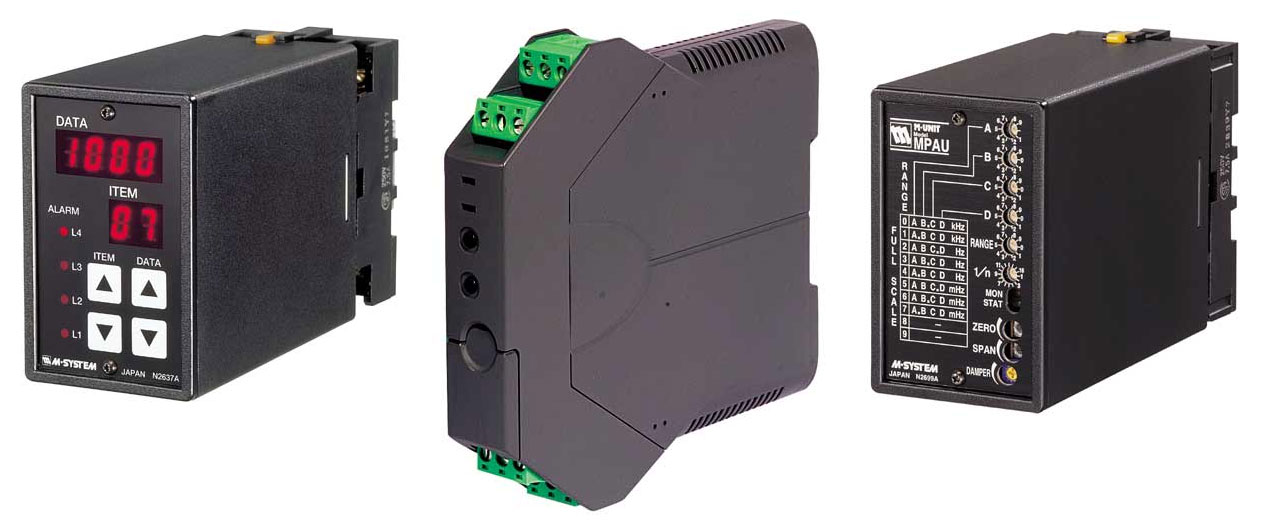

B3/M3
Series
|
- Slim
18mm Housing
- Plug-In
Din Terminals
- 1500VAC
input/output isolation
- “One-Step
Cal” Universal Transmitter (M3LU)
- Two
Wire Transmitter (B3 Series)
- Field
configurable
|
| |
|
MX
Series
|
- Field
Configurable Signal Conditioner
- Front
display in Engineering Units
- Simple
and easy front keypad programming without needing a
hand-held programmer or PC
- Standard
DIN rail or surface mounting
|
| |
|
|
M-Unit
Series
|
- Wide
selection of input/output ranges
- Optional
LCD meter
- Linearized
output for thermocouple and RTD inputs
- Reference
junction compensation performed on terminals
- Simplified
wiring to a standard base socket
- Pin-mounted
modules can be removed, tested and replaced without
disconnecting any leadwires
- Low-energy/minimal-heat
design permits high-density mounting
- Standard
DIN rail or surface mounting
- Base
socket included with modules
|
| |
|
| CAT
NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| MS121215 |
|
M3LU Isolator |
|
|
|
Yes |
|
540,000
|
| Input
Type |
|
Universal |
| Input
Range Configurable |
|
DC
Current, Voltage, T/C, RTD, Potentiometer |
| Output
Range Configurable |
|
1-5V,
4-20mA |
| MS121216 |
|
B3FV Two-wire
Isolator |
|
Maximum Input
Span: 4mV-100V |
|
Yes |
|
367,200
|
| Input
Type |
|
DC
Current, Voltage |
| Input
Range Configurable |
|
1-5V,
4-20mA |
| Output
Range Configurable |
|
DC
Current 4-20mA |
| MS121217 |
|
B3FT 2-wire TC
Isolator |
|
|
|
Yes |
|
399,600
|
| Input
Type |
|
Thermocouple |
| Input
Range Configurable |
|
K,
J , T, E, R, N |
| Output
Range Configurable |
|
DC
Current 4-20mA |
| MS121218 |
|
B3FR Two-wire
RTD Isolator |
|
|
|
Yes |
|
399,600
|
| Input
Type |
|
RTD |
| Input
Range Configurable |
|
Pt100,
Pt50, Ni |
| Output
Range Configurable |
|
DC
Current 4-20mA |
| MS121224 |
|
HDC1 |
|
DC power
supply 24VDC 350mA |
|
Yes |
|
529,200
|
| MS121225 |
|
HDC4 |
|
DC power
supply 24VDC 2.0A |
|
Yes |
|
464,400
|
| MS121226 |
|
MXV Isolator |
|
|
|
Yes |
|
734,400
|
| Input
Type |
|
DC
Voltage |
| Min./Max.
Input Span |
|
10mV/60V |
| Field
Configurable Input Range |
|
1-5V |
| Field
Configurable Output Type |
|
1-5V,
4-20mA |
| MS121227 |
|
MXT
Thermocouple Isolator |
|
|
|
Yes |
|
799,200
|
| Input
Type |
|
Thermocouple |
| Min./Max.
Input Span |
|
B |
| Field
Configurable Input Range |
|
B,
E, J, K |
| Field
Configurable Output Type |
|
1-5V,
4-20mA |
| MS121228 |
|
MXR RTD
Isolator |
|
|
|
Yes |
|
799,200
|
| Input
Type |
|
RTD |
| Min./Max.
Input Span |
|
Platinum
RTD |
| Field
Configurable Input Range |
|
Platinum
RTD |
| Field
Configurable Output Type |
|
1-5V,
4-20mA |
| MS121229 |
|
MXF Function
Module |
|
|
|
Yes |
|
734,400
|
| Input
Type |
|
DC
Voltage |
| Min./Max.
Input Span |
|
10mV/60V |
| Field
Configurable Input Range |
|
1-5V |
| Field
Configurable Output Type |
|
1-5V,
4-20mA |
| MS121230 |
|
MXMS Ramp
Generator |
|
|
|
Yes |
|
464,400
|
| Input
Type |
|
Contact
input |
| Field
Configurable Output Type |
|
1-5V,
4-20mA |
| MS121231 |
|
MXLCF Signal
Conditioner |
|
|
|
Yes |
|
864,000
|
| Input
Type |
|
Strain
Gauge |
| Min./Max.
Input Span |
|
3.0mV/V/30.0mV/V |
| Field
Configurable Input Range |
|
3.0mV/V
to 30mV/V |
| Field
Configurable Output Type |
|
1-5V,
4-20mA |
| MS121232 |
|
MPAU Frequency
Transmitter |
|
|
|
Yes |
|
842,400
|
| Input
Type |
|
Frequency |
| Input
Range (Fixed Range, please specify) |
|
0.01Hz
to 99.99kHz |
| Output
Type (Fixed Range, please specify) |
|
1-5V,
4-20mA |
| MS121233 |
|
APU
DC/Frequency Converter |
|
|
|
Yes |
|
745,200
|
| Input
Type |
|
DC
Current, Voltage |
| Input
Range (Fixed Range, please specify) |
|
DC
Voltage(0-5V, 1-5V, 0-10V) |
| Output
Type (Fixed Range, please specify) |
|
Open
Collector, Relay Contact |
| MS121234 |
|
PRU Pulse
Scaler |
|
|
|
Yes |
|
712,800
|
| Input
Type |
|
Frequency |
| Input
Range (Fixed Range, please specify) |
|
10
Hz to 100KHz |
| Output
Type (Fixed Range, please specify) |
|
Open
Collector, Relay Contact |
| MS121235 |
|
PU-2A |
|
OPTIONAL
Programming Unit for Model:JF
FOR Space Saving Signal Conditioners |
|
Yes |
|
702,000
|
| MS121236 |
|
JXCON-001 |
|
OPTIONAL
Configurator Software & Cable for JX
modules FOR Space Saving Signal Conditioners |
|
Yes |
|
108,000
|
| |
