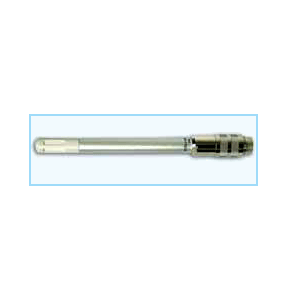

FHA646KxC Capacitive humidity sensor Type

판매가격 : 전화문의
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Built-in sensor with sturdy ALMEMO® circular connector. Sensor tube made of stainless steel
FHA646KxC Capacitive humidity sensor Type




● Built-in sensor with sturdy ALMEMO® circular connector
● Sensor tube made of stainless steel
● Active compensation of humidity measurement by means of the integrated temperature sensor (new measuring range for all ALMEMO® devices with effect from 2003)
● Wide range of operating temperatures
● Intelligent ALMEMO® connecting cables, up to 100 meters
Technical data :
Operative range : -20 to +80 °C/ 5 to 98 % r.H.
Humidity measuring circuit :
Measuring range : 0 to 100 % r.H.
Sensor : capacitive
Accuracy : ± 2 % r.H. at nominal temperature
Reproducibility : <1 % r.H. at nominal temperature
Nominal temperature : +25 ± 3 °C
Sensor operating pressure : atmospheric pressure
Response time T90 : approx. 10 seconds
(without filter) at 5 m/s
Temperature measuring circuit
Sensor: NTC type N
Accuracy : -20 to 0°C: ±0,4°C
0 to 70°C: ±0,1°C
70 to 80°C: ±0,6°C
Reproducibility : 0,1°C
Mechanical design
Sensor tube : stainless steel, diameter 12 mm
Protective cap : SK7, metal-mesh filter
Connection : 8-pin
ALMEMO® circular connector

Types :
  Humidity sensor with stainless steel tube, active temperature compensation,
-20 to +80 °C, and ALMEMO® circular connector
FHA646K1C Sensor length = 120 mm
FHA646K2C Sensor length = 260 mm
FHA646K3C Sensor length = 520 mm
Intelligent ALMEMO® connecting cable with 8-pin ALMEMO® circular coupling
ZA9060VKCR5 Length = 5 meters
ZA9060VKCR10 Length = 10 meters
ZA9060VKCR20 Length = 20 meters
ZA9060VKCR30 Length = 30 meters
ZA9060VKCR50 Length = 50 meters
ZA9060VKCR100 Length = 100 meters

Accessories :
ZB9600W Brackets for wall mounting, distance from wall approx. 40 mm
ZB9600KV Movable aluminum screw connection with Teflon sealing ring
ZB9600F Connecting flange for screw connection, hole circle 38 mm Ø

FHA646-1x/-KxC/-2x/-7/-5x/-WG

Protective caps for capacitive humidity sensors Type
Dimensions : length approx. 33 mm, diameter 12 mm

Types :
  Type Designation Pore-
size
Maximum
temperature
Typical Application
SK7 ZB9600SK7 Metal-mesh filter in
PC-housing
100 μm 120°C Universal, for medium,
contamination, also high humidity
SK6 ZB9600SK6 PTFE-Sinterfilter 50 μm 180°C High chemical resistance
SK8 ZB9600SK8 Stainless steel
sinter filter
10 μm 180°C For severe mechanical stress,
heavy contamination,
strong air flow

Brackets for wall mounting
Movable screw connection
ZB9600W Brackets for wall mounting, distance from
wall approx. 40 mm
ZB9600KV Movable aluminum screw connection with Teflon sealing ring
ZB9600F Connecting flange for screw connection, hole circle 38 mm Ø
