Handy sensor, also suitable for conduit mounting. Suitable for monitoring operations in climatology
FHA6462x Capacitive Humidity Sensor Type

● Handy sensor, also suitable for conduit mounting
● Suitable for monitoring operations in climatology
Types:

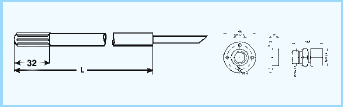

FHA64621 Length L = 132mm
FHA64622 Length L = 272mm
FHA64623 Length L = 532mm

Accessories:
ZB9600KV Movable aluminum screw connection
with Teflon sealing ring
ZB9600F Connecting flange for screw connection, hole circle 38 mm Ø
ZA9060VK2 Extension cable, 2 meters long
ZA9060VK4 Extension cable, 4 meters long
ZA9060VKC10 Intelligent extension cable,
10 meters long
Technical Data:
Operative range : -20 to +60 °C / 5 to 98 % r.H.
Humidity Measuring Circuit
Measuring range: 5 … 100% r.H.
Sensor: capacitive
Accuracy: ±2% r.H. at nominal temperature
Reproducibility: < 1% r.H. at nominal temperature</font>
Nominal temperature: 25°C ±3°C
Sensor operating pressure: atmospheric pressure
Response time T90: approx. 10s (without filter) at 5m/s
Temperature Measuring Circuit
Sensor: NTC type N
Accuracy: -20 … 0°C: ±0.4°C
0 … 70°C: ±0.1°C
70 … 80°C: ±0.6°C
Reproducibility: 0.1°C
Mechanical Construction
Sensor tube: aluminium, 12mm Ø
Protective cap: SK7, metal-mesh filter
Cable: 1.5m long, ALMEMO® connector

FHA646-1x/-KxC/-2x/-7/-5x/-WG
Protective caps for capacitive humidity sensors Type
Dimensions : length approx. 33 mm, diameter 12 mm

Types :
  Type Designation Pore-
size 		Maximum
temperature 		Typical Application
SK7 ZB9600SK7 Metal-mesh filter in
PC-housing 		100 μm 120°C Universal, for medium,
contamination, also high humidity
SK6 ZB9600SK6 PTFE-Sinterfilter 50 μm 180°C High chemical resistance
SK8 ZB9600SK8 Stainless steel
sinter filter 		10 μm 180°C For severe mechanical stress,
heavy contamination,
strong air flow

Brackets for wall mounting
 Movable screw connection
ZB9600W Brackets for wall mounting, distance from
wall approx. 40 mm		 ZB9600KV Movable aluminum screw connection with Teflon sealing ring
ZB9600F Connecting flange for screw connection, hole circle 38 mm Ø
