Capacitive Humidity Sensor Type Compact sensor with extremely small dimensions.
FHA646R   Capacitive Humidity Sensor Type

● Compact sensor with extremely small dimensions.
● Particularly suitable for measurements between PCBs, within housings, in walls, ceilings, and insulations used in structural engineering and protection of historic monuments.
● Sensor usable in the range -30 … 100°C/5 … 98% r.H.

Types:
FHA646R Length 50mm

Accessories:
ZA9060VK2 Extension cable, 2m long
ZA9060VK4 Extension cable, 4m


Technical Data:
Operative range : -30 to +100 °C / 5 to 98 % r.H.
Humidity Measuring Circuit
Measuring range: 0 to 100 % r.H.
Sensor: capacitive
Accuracy: ±2% r.H. at nominal temperature
Reproducibility: < 1% r.H. at nominal temperature</font>
Nominal temperature: 25°C ±3°C
Response time T63: approx. 10s at 1m/s
Temperature Measuring Circuit
Sensor: NTC type N
Accuracy: -20 … 0°C: ±0.4°C
0 … 70°C: ±0.1°C
70 … 100°C: ±0.6°C
Reproducibility: 0.1°C
Mechanical Construction

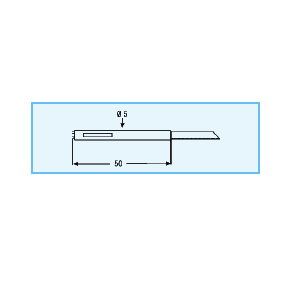

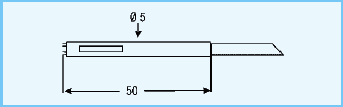

Sensor tube: nickel plated, 50mm long, 5mm Ø
Protective cap: none
Cable: 2m long, ALMEMO® connector
