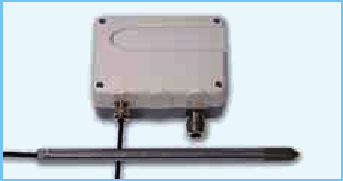

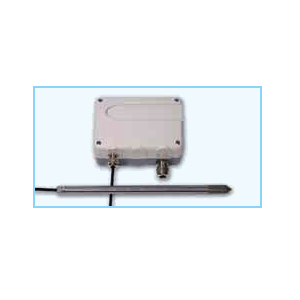

MT8636HR6 High-temperature moisture transmitter Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

High-temperature cable sensor with transmitter, suitable for fixed installation
MT8636HR6 High-temperature moisture transmitter Type

● High-temperature cable sensor with transmitter, suitable for fixed installation
● Analog output range, scalable to -40 to +180 °C / 0 to 100 % r.H.
● Analog output type, 0 to 10 V standard (0 to 5 V or 0/4 to
20 mA also available from the factory)
● Pressure-sealed, up to 15 bar, available on request

Types :
MT8636HR6 High-temperature moisture transmitter with sensor cable, 2 meters long
ZA8636HR6AK ALMEMO® connector cable, 2 meters long, PVC including ALMEMO® connector and mains adapter ZB1012NA1, 12 V / 200 mA

Options:
OT8636HR6L05 High-temp. sensor cable, 5 meters
OT8636HR6L10 High-temp. sensor cable, 10 meters
OT8636HR6L20 High-temp. sensor cable, 20 meters
Technical data :
Operative range
   Sensor, including sensor cable :    -40 to +180 °C
   Electronics housing :    -40 to +60 °C
Humidity measuring circuit
Measuring range : 0 to 100 % r.H.
Sensor : capacitive
Accuracy : ± 2 % r.H. in range 0 to 90 % r.H.
± 3 % r.H. in range 0 to 100 % r.H.
each at nominal temperature
Nominal temperature : +23 °C ± 3 K
Response time : <10 seconds without filter</font>
 Temperature measuring circuit
Sensor:    Pt1000
Accuracy : DIN EN 60751, class A
Electrical data
Supply voltage : 8 to 48 V DC / 12 to 35 V AC
Power consumption
at 24 V
typical 40 mA / 1 W (V output)
typical 80 mA (mA output)
Mechanical data
Sensor : stainless steel, L=238mm, d=12mm
Protective cap : sintered stainless steel filter
Sensor cable 2 meters long, optional : 5/10/20 m
Electronics housing : plastic PC, 135 x 90 x 87 mm

FHA646-1x/-KxC/-2x/-7/-5x/-WG
Protective caps for capacitive humidity sensors Type
Dimensions : length approx. 33 mm, diameter 12 mm

Types :
  Type Designation Pore-
size
Maximum
temperature
Typical Application
SK7 ZB9600SK7 Metal-mesh filter in
PC-housing
100 μm 120°C Universal, for medium,
contamination, also high humidity
SK6 ZB9600SK6 PTFE-Sinterfilter 50 μm 180°C High chemical resistance
SK8 ZB9600SK8 Stainless steel
sinter filter
10 μm 180°C For severe mechanical stress,
heavy contamination,
strong air flow

Brackets for wall mounting
Movable screw connection
ZB9600W Brackets for wall mounting, distance from
wall approx. 40 mm
ZB9600KV Movable aluminum screw connection with Teflon sealing ring
ZB9600F Connecting flange for screw connection, hole circle 38 mm Ø
