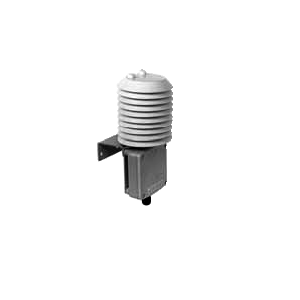

Humidity / temperature transmitter in all-weather protective housing Type
MT8xx6AGx
Humidity / temperature transmitter in all-weather protective housing Type
● Capacitive humidity sensor with / without Pt100 temperature sensor
● Stable all-weather protective housing
● Designed for supply voltage 15 to 24 V DC
Technical Data:
Operative range : -30 to +60 °C, 0 to 90 % r.H.
(non-condensing)
Humidity measuring circuit
Sensor: capacitive thin-film sensor
Measuring range: 0 to 100 % r.H.
Accuracy: ±2% r.H. at nominal temperature
Reproducibility: ±1% r.H. at nominal temperature
Nominal temperature: 25°C ±3°C
Temperature measuring circuit
Sensor: Pt100
Accuracy: Pt100:      IEC 751, class B
Reproducibility: 0.1°C

Types:
Temperature sensor Signal output (corresponds to 0 to 100 % r.H. / -30 to +70 °C)
MT8616AG2 Without temperature sensor Output 0 to 10 V Load ≥1 kΩ max. 10 mA
MT8616AG5 Without temperature sensor Output 0 to 1 V Load ≥1 kΩ max. 10 mA
MT8716AG3 Without temperature sensor Output 0 to 20 mA Load RL max. 500 Ω
MT8716AG4 Without temperature sensor Output 4 to 20 mA Load RL max. 500 Ω
MT8636AG2 Pt100 temperature sensor Output 2 x 0 to 10 V Load ≥1 kΩ max. 10 mA
MT8636AG5 Pt100 temperature sensor Output 2 x 0 to 1 V Load ≥1 kΩ max. 10 mA
MT8736AG3 Pt100 temperature sensor Output 2 x 0 to 20 mA load RL max. 500 Ω
MT8736AG4 Pt100 temperature sensor Output 2 x 4 to 20 mA Load RL max. 500 Ω
