Hygrometric humidity sensor with synthetic harp with or without temperature sensor for conduit mounting.
FH98x61 Hygrometric Humidity Sensor Type

● Hygrometric humidity sensor with synthetic harp with or
without temperature sensor for conduit mounting.
● Suitable for stationary measurements in climatology.
● Humid element consisting of several water-resistant synthetic fibre tapes each having 90 hygroscopic single fibres with a diameter of 0.003mm.
● Sensor usable in the range -40 … 80°C / 30 … 100% r.H.

Accessories:
ZB9806F Mounting flange for conduit mounting
ZB9806W Plastic support for wall mounting
Connecting cable, 2m long, with
ZA9806F 1 ALMEMO® connector for humidity
Connecting cable, 2m long, with 2 ALMEMO® connectors
ZA9806FT for temperature and humidity

Types (incl. mounting flange):
FH98161 For humidity only
FH98361 For humidity and temperature

Technical Data:
Humidity Measuring Circuit
Measuring element: synthetic harp, hygrometric,
water-resistant
Accuracy: >40% r.H.: ±2.5%
<40% r.H.: ±3.5%</font>
Operative range: 30 … 100% r.H., -30 … 80°C
Permiss. ambient temp.: at housing -20 … +60°C
at sensor tube: -40 … 80°C
Measuring medium: air, unpressurised, non-aggressive
Half period at 2m/s: 1.2min
Permissible air speed: 8m/s
Output: 100 to 138.5Ω (Pt100)
corresponds to 0 to 100% r.H.
Temperature Measuring Circuit
Sensor: Pt100
Accuracy: DIN/IEC 751, Class B
Reproducibility: 0.1°C

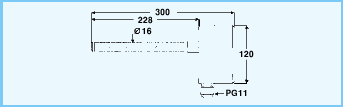

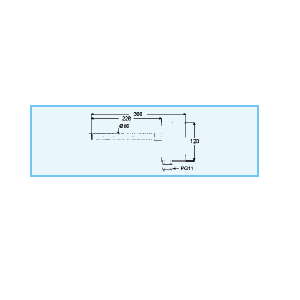

Mechanical Construction
Sensor tube: special steel, 228mm long,
16mm Ø
Housing: ABS, protection system IP64
