Hygrometric humidity sensor with plastic harp with or without temperature sensor for conduit mounting.
FH98x62   Hygrometric Humidity Sensor Type

● Hygrometric humidity sensor with plastic harp with or without temperature sensor for conduit mounting.
● Suitable for stationary measurements in climatology.
● Humid element consisting of several water-resistant synthetic fibre tapes each having 90 hygroscopic single fibres with a diameter of 0.003mm.
● Sensor usable in the range 0 … 50°C / 35 … 100% r.H.

Accessories:
ZA9806F Connecting cable, 2m long, with 1 ALMEMO® connector For humidity
ZA9806FT Connecting cable, 2m long, with 2 ALMEMO® connectors For temperature and humidity

Types:
FH98162 Only for humidity
FH98362 For humidity and temperature
Technical Data:
Measuring element: synthetic harp, hygrometric,
water-resistant
Accuracy: >40% r.H.: ±2.5%
<40% r.H.: ±3.5%</font>
Operative range: 35 … 100% r.H., 0 … 50°C
Permiss. ambient temp.: at housing 0 … 50°C
Measuring medium: air, unpressurised, non-aggressive
Half period at 2m/s: 1.2min
Permissible air speed: 8m/s
Output: 100 to 138.5Ω (Pt100)
corresponds to 0 to 100% r.H.
Temperature Measuring Circuit
Sensor: Pt100
Accuracy: DIN/IEC 751, Class B
Reproducibility: 0.1°C

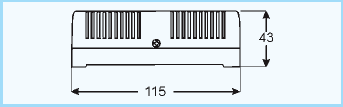

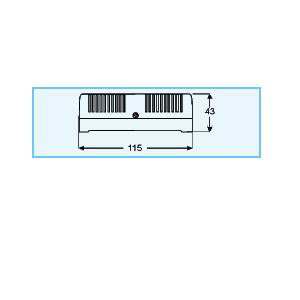

Mechanical Construction
Housing: plastic, protection system IP20
