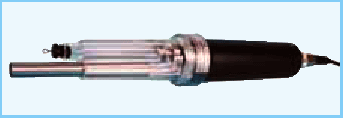

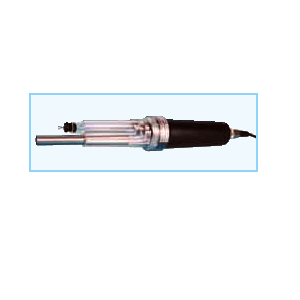

FNA846 Hand-held psychrometer type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Hand-held psychrometer type Operating range 0 to +60 °C / 10 to 100 % r.H.
FNA846   Hand-held psychrometer type

● Operating range 0 to +60 °C / 10 to 100 % r.H.
● Available values :
dry temperature, relative humidity, dew point, mixture ratio,humid temperature, partial vapour pressure

☞ For precision measuring operations the current
atmospheric pressure can be entered in ALMEMO®
devices and the measured value will then be corrected
automatically.

Accessories:
FDA612MA Measuring module for barometric pressure
ZA9060AK1 Connecting cable
for pressure measuring module, 0.2m
ZB9846VR Extension pipe, 200 mm long
ZB9846PS Plastic suction hose, 300 mm long
ZB9846AF Tripod
ZB9846ED Spare wicks (2 pieces)
Technical Data:
Humidity
Measuring range: 10 to 100% r.H.
Measuring type: psychrometric
Accuracy: ±1% r.H. under nominal conditions
Reproducibility: < 1% r.H.</font>
Nominal conditions: 25°C ±3°C , 1013 mbar, 50% r.H.
Temperature
Sensor: 2 x NTC type N
Accuracy: 0 to 60°C: ±0.1K
Electrical supply
Operating voltage: 9 V DC via ALMEMO® device
Current consumption : approx: 10 mA
Mechanical construction
Housing: plastic
Dimensions: Ø 50 mm, 245 mm long
Weight: approx. 300 g
Cable : 1.5 m long
with ALMEMO® connector

Types:
FNA846 Hand-held psychrometer, including water bottle, two wicks
FNA846WB As above with turn-off motor for WBGT measurement
