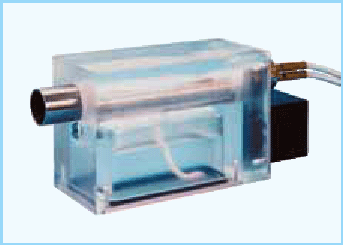

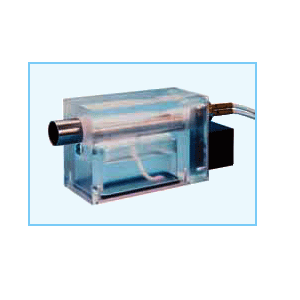

Psychrometer type Optimized version for long-term measuring operations
FPA8363
Psychrometer type
● Optimized version
for long-term measuring operations
● Especially
suitable for high temperatures
● Operating
range 0 to 90 °C / 10 to 100 % r.H.
● Available
values :
dry temperature, relative humidity, dew point, mixture ratio,
humid temperature, partial vapour pressure
☞ For precision measuring operations
the current
atmospheric pressure can be entered in ALMEMO®
devices and the measured value will then be corrected
automatically.
Accessories:
FDA612MA
Measuring module
for barometric pressure
ZA9060AK1
Connecting cable, 0.2 m
for pressure measuring module
ZB98462ED
Spare wicks (2 pieces)
ZB5090VK05
Extension cable for mains supply units
with 3-pin bayonet coupling,
length : 5 meters
Technical Data:
Humidity
Measuring range :
10 to 100 % r.H.
Measuring type :
psychrometric
Accuracy :
±1% r.H. under nominal conditions
Reproducibility :
< 1% r.H.</font>
Nominal conditions :
25 ± 3 °C , 1013 mbar, 50% r.H.
Temperature FPA8363
Sensor:
2 x Pt100
Accuracy:
IEC 751, IEC 751, class B
ALMEMO® adjusted
Electrical supply
Operating voltage :
12 V DC via mains supply unit
(cable approx. 2 meters)
Current consumption
approx. 40 mA
Mechanical construction
Housing :
plastic polycarbonate
Dimensions :
L 175 x W 50 x H 75
Weight :
approx. 890 g
Cable :
PVC (up to 90°C),
5 m with ALMEMO® connector
FNA8463 : 1 cable / 1 connector
FPA8363 : 2 cables / 2 connectors
Types:
(including mains supply unit, water bottle,
two wicks)
FPA8363
Psychrometer with 2 x Pt100 sensors including connecting
cable (two ALMEMO® connectors)
