Consisting of one temperature sensor and an integrated sensor chip with CCC dew point sensor.

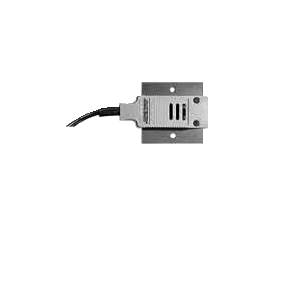

FHA9461  Dew Point Detector Type

● Dew detector for determination of dew conditions.
● Consisting of one temperature sensor and an integrated sensor chip with CCC dew point sensor.
● Particularly suitable in building physics for control
measurements and stationary installation.
● The dew point detector does not provide a measuring signal but a step function: dewed (100%)/ no dew (0%).

Types:
FHA9461 Sensor and electronics
integrated in ALMEMO® connector,
mounted on heat conducting
plate made of aluminium

Technical Data:
Principle of measurement: CCC sensor
Operative range: 0°C to +70°C
(no ice formation,
no saliferous atmosphere)
Settling time: final value after 2 to 60 seconds
Temperature sensor: NTC type N (10k at 25°C),
accuracy: ±0.1°C
(within operative range)
Signal output: scaled voltage approx. 0 to 1V
Current consumption: approx. 3mA
Heat flow plate: aluminium, 40 x 40mm
Storage temperature: -10°C to +70°C
