Dew point measuring transmitter according to the CCC principle.
MT8716DT1  Dew Point Transmitter Type

● Dew point measuring transmitter according to the CCC
principle.
● Proven probe design allows for favourable measurement
arrangements at the control of technical processes.
● Dry powdered metal cover used to protect the sensor unit.
● Control and evaluation electronics in a sealed aluminium
housing.
● The sensor head includes sealed current leadthroughs so that only the sensor element and the cooling module are exposed to the substance under test.

Accessories:
ZB8716NA Mains adapter 12V/1A
ZA8716AK ALMEMO® connecting cable
1.5m long including assembly

Types:
MT8716DT1 Dew point transmitter for measurements without ice formation
Technical Data (incl. electronic):
Principle of measurement: CCC sensor

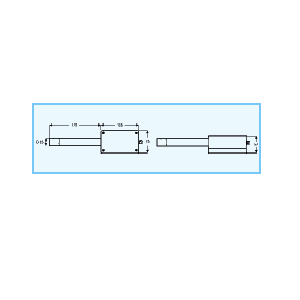

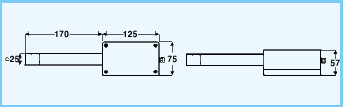

Housing dimensions: L125 x W75 x H57mm
Probe diameter: 25mm
Probe tube length: 170 to 200mm
Weight: 800g
Power supply: 10 to 35 V DC / 10 to 24 V AC
Power consumption: max. 7W
Operating temperature: 0°C to +70°C
Dew point measuring range: 0°C to +70°C (no ice)
Temperature drop: up to 30K
Error of measurement: < 0.5K
Settling time: < 2min
Dew point temperature
output:
6 to 20 mA / 0 to 70 °C
Permissible load (burden): 0 to 500Ω
Connection: round jack 5-pin
