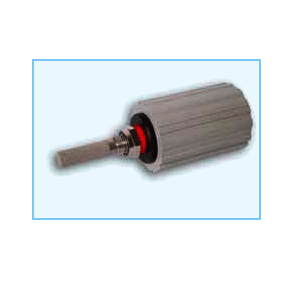

Sturdy dew-point transmitter with thin-film aluminum oxide humidity sensor
MA8616DTP1Dew-point
transmitter
● Sturdy dew-point
transmitter with thin-film aluminum oxide humidity sensor
● Wide dew-point
measuring range
● Wide range
of operating temperatures
● Suitable for
applications involving high air speeds
● Process connection
for high pressures
Technical data :
Sensor type :
Thin-film
aluminum oxide humidity sensor
Measuring range
: -80 to +20 °C DT
Dew-point temperature
Measuring accuracy :
-65 to +20 °C DT : ± 2 °C
-80 to -65 °C DT : ± 3 °C
Reproducibility :
-65 to +20 °C DT : ± 0.5 °C
-80 to -65 °C DT : ± 1.0 °C
Operating temperature :
-40 to +60 °C (sensor)
Process connection :
3/4" 16 UNF thread
with Viton O-ring seal
Working pressure :
350 bar
Air speed :
up to 100 m/s
Warm-up phase :
3 min
Response speed :
T63 < 5 seconds</font>
Storage temperature :
0 to +70 °C (electronics)
Voltage supply :
12 to 24 V DC
via ALMEMO® connector
Output :
0 to 10 V (12-bit resolution)
with 1.5 meters connecting cable
and ALMEMO® connector
Sensor supply : 12 V
Calibration :
every 6 to 12 months
(after use) recommended
Type :
MA8616DTP1
Dew-point transmitter with connecting
cable, 1.5 meters long, and ALMEMO® connector
