FHA936WD Water Detection Probe Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Water detection probe for instant detection of uncombined water.

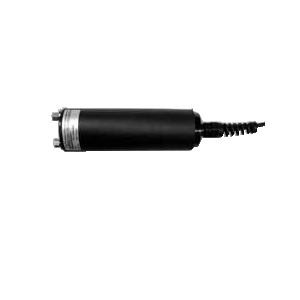

FHA936WD  Water Detection Probe Type

● Water detection probe for instant detection of uncombined
water.
● Particularly suitable for construction applications, especially in locations that are difficult to check visually, e.g. at sealing
joints, under cement floors etc.
● Indirect moisture measurement according to the principle of
conductivity.
● Probe with two collets for easy electrode replacements.
● Electrodes in three different designs for matching any
required application.








Types:
FHA936WD Water detection probe

Technical Data:
Measuring method: detection of water
Meas. values: <10% no water<br> >10% water
Housing: plastic handle
40mm Ø, 130mm long
Electrodes: stainless steel
Electrode types: uninsulated with rounded tip:
200mm long, 3mm Ø

uninsulated with sharp-edged tip:
50mm long, 3mm Ø

spring steel strap:
200mm long, 6mm wide, 0.5mm high
Weight: 260g
Nominal temperature: 23°C ±2°C
Operating temperature: 0 to +60°C
Storage temperature: -20 to +80°C
Signal output: ALMEMO® (approx. 0 to 2V)
Power supply: 7.5 to 15V
Current consumption max. 10mA
