Moisture sensor for determination of the moisture content in mineral construction materials, wood and cardboard.

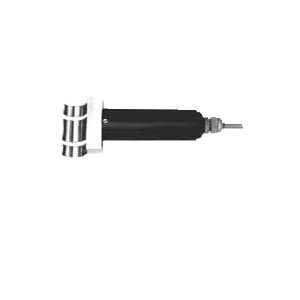

FHA696MF Moisture
Sensor Type
● Moisture sensor for
determination of the moisture content in mineral construction materials,
wood and cardboard.
● Indirect measurement
of the moisture through the
determination of the dielectric constant.
● Capacity measurement
through a high frequency electromagnetic field, which penetrates the material
in a nondestructive way.
Accessories:
ZB9696PE05
Test block for min. construct. materials
ZB9696PE30
Test block for wood, paper, cardboard
Types:
FHA696MF
Moisture sensor
Technical Data:
Measuring method:
capacitive
Resolution:
0.1%
Measuring range (moisture):
0 to 50% moisture
Measuring range (material):
mineral construction materials 0 to 20%, woods 0
to 50%, paper and cardboard 0 to 20%
Housing:
plastic handle with integrated
electronics 40mm Ø, 130mm long
Terminal block:
aluminium/plastic
20 x 25 x 70mm
Measuring comb:
stainless spring steel
0.5mm, 70 x 35mm
Weight:
260g
Nominal temperature:
15 to 25°C
Operative range:
0 to +60°C
Storage temperature:
-20 to +80°C
Signal output:
0 to 2V
Power supply:
+8 to +12V
Current consumption
approx. 7mA
